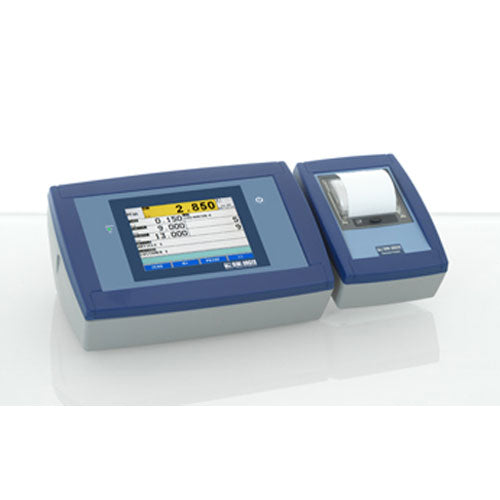

3590 ET Touch screen indicator with AF01 software
3590 ET Touch screen indicator with AF01 software
3590 ET Touch screen indicator with AF01 software
3590 ET Touch screen indicator with AF01 software

3590 ET Touch screen indicator with AF01 software

Gravitation Ltd SKU: 3590ET Touch Screen-1

€POA

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Enquire Now
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery

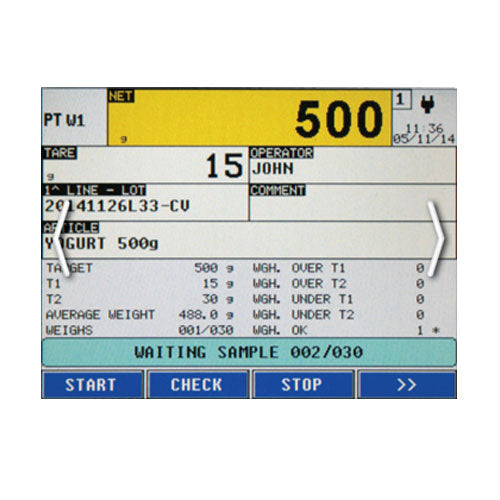

    • Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.

    • Multilanguage software.

    • QWERTY, AZERTY o QWERTZ keyboard, selectable.

    • ABS waterproof enclosure, with new IP65 protection system.

    • Dimensions: 278x125x186 mm.

    • Suitable for use on the table, column, or wall.

    • Real time clock and permanent data storage.

    • Fitted alibi memory, integrated on the motherboard.

    • Built-in micro SD for recording logos (upon request).

    • Functions available with DINITOOLS utility
      - Configuration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the configuration.
      - Instrument calibration with numeric values.
      - Customization of the screens.

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

    • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • Connectable to printers and labellers with free programmation of the printout formats.

    • 110-240 Vac power supply.





















 APPLICATION SOFTWARE



    • AF01: Totalization and formula weighing (integrated)

    • AF02: Pieces/quantity counting (optional)

    • AF03: Weighbridges - Input/Output vehicle (optional)

    • AF04: Statistical checking of prepackaged goods (optional)

    • AF05: Price compunting and industrial labelling (optional)

    • AF08: Management of wheel and axle weighing systems (optional)

    • BATCH1: Single product dosage systems in loading and unloading (optional)




















I/O SECTION



    • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optional interfaces.

    • 1 RS232 serial port (RS485 optional), for connection to printer, remote scale, badge reader, or digital load cells.

    • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

    • 4 optoisolated outputs (optional).

    • 2 optoisolated inputs (optional).

    • External Profibus interface (optional), for automation management.

    • Modbus RTU Protocol.

    • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.




















CUSTOMISED APPLICATIONS








Thanks to our integrated development, you can create complete customised applications in autonomy:



    • wizards, operator messages

    • serial port management, protocols customization

    • digital I/O full management

    • sequential or simultaneous automations

    • data entry, custom archives
