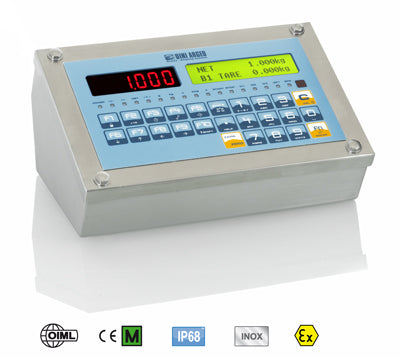

3590E "ENTERPRISE" 3GD series

Gravitation Ltd

POA

SKU: 3590E 3GD series Group
Click here to view a specification PDF




 MAIN FEATURES



    • 25-key alphanumerical waterproof keyboard.

    • Highly efficient red LED display with 6 digits 15mm high.

    • Backlit LCD graphic 25x100mm display.

    • Synoptic bar graph with 16 bright LEDs showing the active functions.

    • Easy to clean STAINLESS STEEL waterproof IP68enclosure; resistant to harsh and corrosive environments.

    • Dimensions: 264x115x174 mm.

    • Suitable for use on the table, column, or wall.

    • Real time clock and permanent data storage.

    • Fitted with alibi memory, integrated on the motherboard.

    • Functions available with DINITOOLS utility
      - Configuration, calibration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the saved data for quick replacement.
      - Instrument calibration with numeric values.

    • Selection of the programme language directly in the set-up.

    • 24-bit A/D converter, 4 channels, up to 200 conv./sec. and up to 8 signal linearisation points.

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • 110-240 Vac power supply.

    • Management of up to 4 independent scales (up to 2 for the AF03 version).

    • Connectable with up to 16 analogue 350-Ohm (or 45 1000-Ohm) load cells.

    • Connectable to printers and labellers with the command drivers.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID

    • OIML R134 (AF09)




































I/O SECTION



    • Two RS232 serial ports, for connection to printer (in safety zone), PC or PLC.

    • One RS232/RS485 serial port, for connection to printer (in safety zone), PC or PLC.

    • 4 optoisolated outputs (16 in the IO versions).

    • 2 optoisolated inputs (8 in the IO versions).

    • Profibus interface to install in safety zone (available upon request for E-AF01 and E-BATCH1 versions).

    • Analogue output with D/A converter at 16 bit, 0-10Vdc, 0-20mA, 4-20mA (available upon request for the IO versions).
