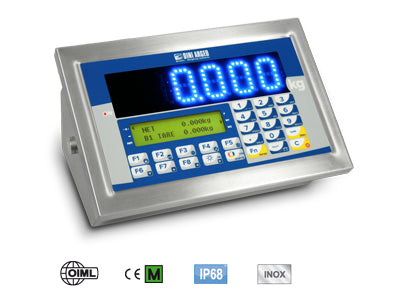

3590ED "COLOUR": EVOLVED WEIGHT INDICATOR
3590ED "COLOUR": EVOLVED WEIGHT INDICATOR
3590ED "COLOUR": EVOLVED WEIGHT INDICATOR

3590ED "COLOUR": EVOLVED WEIGHT INDICATOR

Gravitation Ltd SKU: 3590ED "COLOUR": Group

€POA

Shipping calculated at checkout

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Enquire Now
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF



 MAIN FEATURES



    • 25-key alphanumerical waterproof keyboard.

    • Very intense bright dot LED RGB, h=40mm, with intensity and colour quickly configurable through the keyboard.

    • Backlit LCD graphic 25x100mm display.

    • Easy to clean STAINLESS STEEL waterproof IP68enclosure; resistant to harsh and corrosive environments.

    • Dimensions: 280x132x185 mm.

    • Suitable for use on the table, column, or wall.

    • Real time clock and permanent data storage.

    • Fitted alibi memory, integrated on the motherboard.

    • Functions available with DINITOOLS utility
      - Configuration, calibration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the data saved for quick substitution.
      - Instrument calibration with numeric values.

    • Selection of the programme language directly in the set-up.

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

    • 4 independent analogue channels (up to 2 in the E-AF03 version, 1 in the E-AF09 version) for reading of the weight.

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • Connectable to printers and labellers with the command drivers.

    • 110-240 Vac power supply.



























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID

    • OIML R134 (AF09)











3590ED: Weight indicator with 40mm very intense bright LEDs.



























 I/O SECTION



    • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optinal interfaces.

    • 1 RS232 serial port (optional RS485), for connection to weight repeater, remote scale, badge reader or digital load cells.

    • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

    • 4 optoisolated outputs (optional).

    • 2 optoisolated inputs (optional).

    • External Profibus interface (optional), for automation management.

    • Modbus RTU protocol.

    • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.





















 APPLICATION SOFTWARE



    • AF01: Totalization and formula weighing

    • AF02: Pieces/quantity counting

    • AF03: Weighbridges - Input/Output vehicle

    • AF04: Statistical checking of prepackaged goods

    • AF05: Price compunting and industrial labelling

    • AF08: Wheel and axle static weighing with 2 or various platforms

    • AF09: Dynamic and static axle weighing with 2 platforms

    • BATCH1: Single product dosage systems in loading and unloading



























 CUSTOMISED APPLICATIONS








Thanks to our integrated development, you can create complete customised applications in autonomy:



    • wizards, operator messages

    • serial port management, protocols customization

    • digital I/O full management

    • sequential or simultaneous automations

    • data entry, custom archives
