3590EGT 3GD "TOUCH"
3590EGT 3GD "TOUCH"
3590EGT 3GD "TOUCH"
3590EGT 3GD "TOUCH"

3590EGT 3GD "TOUCH"

Gravitation Ltd SKU: 3590EGT 3GD Group

€POA

Shipping calculated at checkout

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Enquire Now
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF







 MAIN FEATURES



    • 5,7' colour touch screen display

    • Multilanguage software

    • 15-key alphanumerical waterproof keyboard

    • 3-way control light

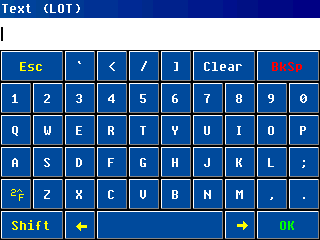

    • Selectable QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen

    • Stainless steel waterproof enclosure, with newIP68 protection system

    • Dimensions: 280x143x185mm

    • Suitable for use on the table, column or wall

    • Real time clock and permanent data storage

    • Fitted alibi memory, integrated on the motherboard

    • Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request)

    • Functions available with DINITOOLS utility
      - Configuration, data entry and print formatting
      - Recording and filing of all the information on PC
      - Complete retrieval of the configuration
      - Instrument calibration with numeric values
      - Customization of the screens

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points

    • 4 independent analogue channels for reading of the weight

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm)

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points

    • Connectable to printers and labellers with free programmation of the printout formats

    • Power supply from 110-240Vac line or external rechargeable battery (recharge in safety zone).



























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID

    • OIML R134 (AF09)





















 I/O SECTION



    • Two RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.

    • One RS485/RS232 serial port, for connection to printer, PC, PLC, or digital load cells.

    • 4 optoisolated outputs, up to 16 with optional board.

    • 2 optoisolated inputs, up to 8 with optional board.

    • Profibus interface to install in safety zone.

    • Analog output DAC16O needs the expansion board IOEXPB and it's only compatible to a bench mounting.
