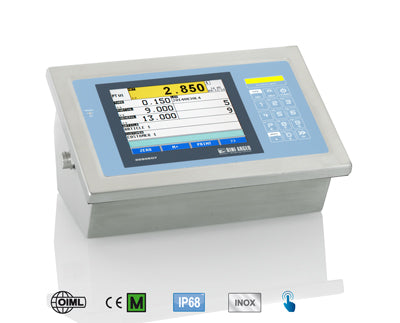

3590EGT Indicator "GRAPHIC TOUCH": Touch Screen weight indicator for industrial applications

Gravitation Ltd

POA

SKU: 3590EGT "GRAPHIC TOUCH"
Click here to view a specification PDF







 MAIN FEATURES



    • Backlit graphic display with touch screen technology, lxh= 120x90mm size.

    • Multilanguage software.

    • 15-key alphanumerical waterproof keyboard.

    • 3-way control light.

    • Selectable QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen.

    • Stainless steel waterproof IP68 enclosure, with new IP68 protection system.

    • Dimensions: 280x143x185 mm.

    • Suitable for use on the table, column, or wall.

    • Real time clock and permanent data storage.

    • Fitted alibi memory, integrated on the motherboard.

    • Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).

    • Functions available with DINITOOLS utility
      - Configuration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the configuration.
      - Instrument calibration with numeric values.
      - Customization of the screens.

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

    • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • Connectable to printers and labellers with free programmation of the printout formats.

    • 110-240 Vac power supply.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID

    • OIML R134 (AF09)





























 APPLICATION SOFTWARE



    • AF01: Totalization and formula weighing (integrated)

    • AF02: Pieces/quantity counting (optional)

    • AF03: Weighbridges - Input/Output vehicle (optional)

    • AF04: Statistical checking of prepackaged goods (optional)

    • AF05: Price compunting and industrial labelling (optional)

    • AF08: Wheel and axle static weighing with 2 or various platforms (optional)

    • BATCH1: Single product dosage systems in loading and unloading (optional)





























 CUSTOMISED APPLICATIONS








Thanks to our integrated development, you can create complete customised applications in autonomy:



    • wizards, operator messages

    • serial port management, protocols customization

    • digital I/O full management

    • sequential or simultaneous automations

    • data entry, custom archives



Dini Argeo can offer the service of custom development programs.




























 I/O SECTION



    • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optinal interfaces.

    • 1 RS232 serial port (optional RS485), for connection to weight repeater, remote scale, badge reader or digital load cells.

    • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

    • 4 optoisolated outputs (optional).

    • 2 optoisolated inputs (optional).

    • External Profibus interface (optional), for automation management.

    • Modbus RTU Interface.

    • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC or tablet.

    • Analog output DAC16O needs the expansion board IOEXPB and it's only compatible to a bench mounting.





















 COMPLETELY CUSTOMIZABLE SCREENS



    • Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:





    • The "Dini Display Tool" is a PC software which allows you to quickly customize the TOUCH SCREEN.
