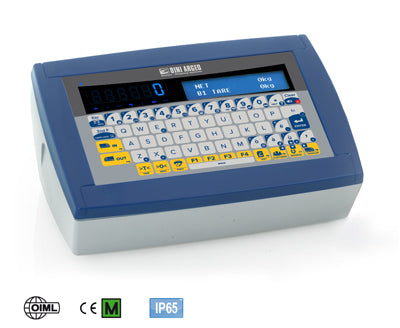

3590EQ "QWERTY" Weight Indicator

Gravitation Ltd

POA

SKU: 3590EQ "QWERTY" Group-1
Click here to view a specification PDF







 MAIN FEATURES

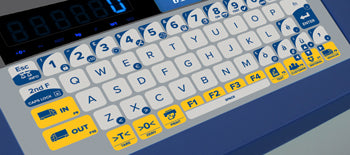

    • 59-key QWERTY and functional alphanumerical waterproof keyboard.

    • Highly efficient BLU LED display with digits 15mm high. Configurable screens.

    • Blue backlit LCD graphic 25x100mm display.

    • Easy to clean ABS waterproof IP65 enclosure; resistant to harsh and corrosive environments.

    • Dimensions: 279x124x187mm.

    • Suitable for use on the table, column, or wall.

    • Real time clock and permanent data storage.

    • Fitted alibi memory, integrated on the motherboard.

    • Functions available with DINITOOLS utility
      - Configuration, calibration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the data saved for quick substitution.
      - Instrument calibration with numeric values.

    • Selection of the programme language directly in the set-up.

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

    • 2 independent analogue channels for reading of the weight.

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market.

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • Connectable to printers and labellers with the command drivers.

    • 110-240 Vac power supply; built-in rechargeable battery for use in prolonged absence of the power mains.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76













DOWNLOAD













3590EQ: Weight indicator with qwerty keyboard


3590EQP: Version with integrated printer




























 I/O SECTION



    • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optinal interfaces.

    • 1 RS232 serial port (optional RS485), for connection to weight repeater, remote scale, badge reader or digital load cells.

    • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

    • 4 optoisolated outputs (optional).

    • 2 optoisolated inputs (optional).

    • External Profibus interface (optional), for automation management.

    • Modbus RTU protocol.

    • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC or tablet.
