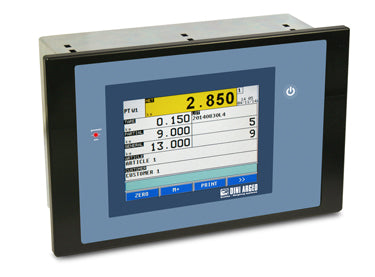

3590ETB "TOUCH": Panel Touch Screen weight indicator

3590ETB "TOUCH": Panel Touch Screen weight indicator

Gravitation Ltd SKU: 3590ETB "Touch"

€POA

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Enquire Now
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF







 MAIN FEATURES



    • Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.

    • Multilanguage software.

    • Selectable QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen, selectable.

    • Frontal panel with high level mechanical characteristics:
      - Waterproof front panel, ideal for wet environments.
      - Easy and fast to clean thanks to the scratchproof smooth surface.
      - Electrical isolation against electrostatic discharge.
      - Suitable for food contact (physiologically inert).
      - Suitable for particularly arduous working conditions.
      - High resistance against accidental damage.
      - Fitted with waterproof washer.

    • IP65 frontal protection.

    • Stainless steel protection enclosure, with 7 fixing points for maximum integrity against water and dust.

    • Overall dimensions: 265x175x90 mm.

    • Drilling template: 233x161mm.

    • Real time clock and permanent data storage.

    • Fitted alibi memory, integrated on the motherboard.

    • Slot for built-in micro SD for recording logos (upon request).

    • Functions available with DINITOOLS utility
      - Configuration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the configuration.
      - Instrument calibration with numeric values.
      - Customization of the screens.

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

    • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • Connectable to printers and labellers with free programmation of the printout formats.

    • 12Vdc power supply.



























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID

    • OIML R134 (AF09)





















COMPLETELY CUSTOMIZABLE SCREENS



    • Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:





    • The "Dini Display Tool" is a PC software which allows you to quickly customize the TOUCH SCREEN.





















       APPLICATION SOFTWARE



        • AF01: Totalization and formula weighing (integrated)

        • AF02: Pieces/quantity counting (optional)

        • AF03: Weighbridges - Input/Output vehicle (optional)

        • AF04: Statistical checking of prepackaged goods (optional)

        • AF05: Price compunting and industrial labelling (optional)

        • AF08: Management of wheel and axle weighing systems (optional)

        • BATCH1: Single product dosage systems in loading and unloading (optional)



























       CUSTOMISED APPLICATIONS








      Thanks to our integrated development, you can create complete customised applications in autonomy:



        • wizards, operator messages

        • serial port management, protocols customization

        • digital I/O full management

        • sequential or simultaneous automations

        • data entry, custom archives
































 I/O SECTION



    • 2 RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.

    • 1 RS485/RS232 serial port, for connection to printer, remote scale, badge reader, or digital load cells.

    • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

    • Fitted with 4 optoisolated outputs + 12 as optional .

    • Fitted with 2 optoisolated inputs + 6 as optional.

    • Predisposed for 16 bit analogic output.

    • External Profibus interface (optional), for automation management.

    • Modbus RTU Protocol.

    • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.
