3590ETKR "TOUCH": Touch Screen weight indicator with transport case

Gravitation Ltd

POA

SKU: 3590ETKR "TOUCH" Group
Click here to view a specification PDF







MAIN FEATURES



    • ABS transport case, with housing for the indicator and space for extra accessories.

    • 3590ET series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for printer, connectors for platforms, and serial output on 9-pole connector.

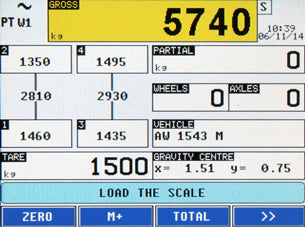

    • Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.

    • Multilanguage software.

    • QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen, selectable.

    • Dimensions: 325x460x170 mm. Weight: about 5kg.

    • Fitted with attached thermal printer.

    • Real time clock and permanent data storage.

    • Fitted alibi memory, integrated on the motherboard.

    • Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).

    • Functions available with DINITOOLS utility
      - Configuration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the configuration.
      - Instrument calibration with numeric values.
      - Customization of the screens.

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

    • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • Connectable to printers and labellers with free programmation of the printout formats.

    • Power supply through built-in rechargeable battery, the operating time is of about 10 hours.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID

    • OIML R134 (AF09)





























 APPLICATION SOFTWARE



    • AF03: Weighbridges - Input/Output vehicle (optional)

    • AF08: Management of wheel and axle weighing systems (standard)





























 CUSTOMISED APPLICATIONS








Thanks to our integrated development, you can create complete customised applications in autonomy:



    • wizards, operator messages

    • serial port management, protocols customization

    • digital I/O full management

    • sequential or simultaneous automations

    • data entry, custom archives





















 COMPLETELY CUSTOMIZABLE SCREENS



    • Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:






















 I/O SECTION



    • Available on panel:
      - One RS232 serial ports, for connection to PC, on 9-pole connector.


    • Available on internal side:
      - 1 RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.
      - 1 RS232 serial port (optional RS485), for connection to printer, remote scale, badge reader, or digital load cells.
      - Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
      - Up to 4 optoisolated outputs (optional).
      - Up to 2 optoisolated inputs (optional).
