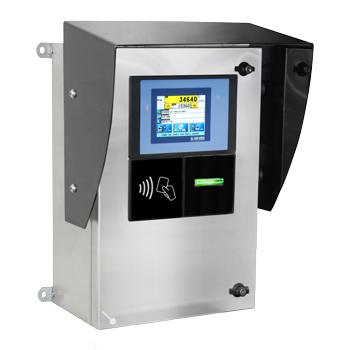

3590ETPBOX "TOUCH": SELF-SERVICE SYSTEM

3590ETPBOX "TOUCH": SELF-SERVICE SYSTEM

Gravitation Ltd SKU: 3590ETPBOX "TOUCH" Group

€POA

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Enquire Now
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF




TECHNICAL FEATURES



    • Satin stainless steel sturdy case, complete with electromechanical and power supply unit for integrated devices.

    • Sheet steel protection visor against sun and rain.

    • 5,7" backlit touch screen display.

    • Completely customizables visualizations.

    • QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen, selectable.

    • RFID reader integrated, with a reading capacity of about 30mm distance.

    • Fitted with alibi memory.

    • Quickly selection of the visualized language.

    • Thermal printer fitted with paper cutter. Print speed >50mm/sec., 203 dpi resolution, 24/40 columns, 60mm paper width.

    • Completely customizables tickets.

    • AF03 software for weighbridges, standard configurated for self-service use.

    • 230Vac power supply.



























 MAIN FUNCTIONS



    • Clearing, Automatic Tare, Presettable Tare, locked, unlocked tare.

    • Management of the main digital load cells available on the market.

    • Automatic acquisition of the operator and vehicle data, through magnetic badge, for storage of input/output weighs.

    • Management of vehicles with trailer also on 2 scales (tractor is weighed on scale 1 + trailer is weighed on scale 2)

    • Database of 500 customers/suppliers with two alphanumeric descriptions of 20 characters, input and output total, net total, weighs total.

    • Database of 500 articles with alphanumeric description of 20 characters, input total, output total, net total, weighs total.

    • Database of 500 vehicles with alphanumeric description of 20 characters, plate (10 crt), linked tare, input total, output total, net total, weighs total.

    • 6 levels of totals zeroable and printable in an independent way: partial total, general total, grand total, customer total, article total, vehicle total.

    • Printing of complete database reports or just the handled articles.

    • Automatic printing with completely configurable layout.

    • Possibility to set a password to access the SETUP.





















 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R134 (AF09)



























 STANDARD SERIAL PORTS, INPUTS AND OUTPUTS



    • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optional interfaces.

    • 1 RS485/RS232 serial port, for connection to printer, remote scale, badge reader, or digital load cells.

    • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

    • 4 optoisolated outputs.

    • 2 optoisolated inputs.
