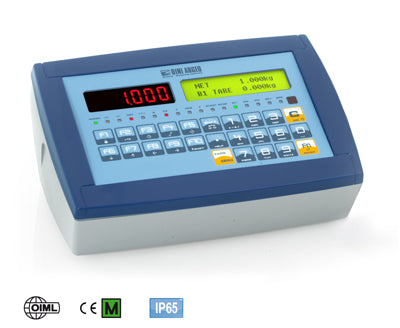

3590EXP "ENTERPRISE" WEIGHT INDICATOR

Gravitation Ltd

POA

SKU: 3590EXP "ENTERPRISE" Group-1
Click here to view a specification PDF




 MAIN FEATURES



    • 25-key alphanumerical waterproof keyboard.

    • Highly efficient red led display with 6 digits 15mm high.

    • Backlit LCD graphic 25x100mm display.

    • Synoptic bar graph with 16 bright LEDs showing the active functions.

    • Easy to clean ABS waterproof IP65 enclosure; resistant to harsh and corrosive environments.

    • Dimensions: 278x125x186 mm.

    • Suitable for use on the table, column or wall.

    • Real time clock and permanent data storage.

    • Fitted alibi memory, integrated on the motherboard.

    • Functions available with DINITOOLS utility
      - Configuration, calibration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the data saved for quick substitution.
      - Instrument calibration with numeric values.

    • Selection of the programme language directly in the set-up.

    • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

    • 4 independent analogue channels (up to 2 in the E-AF03 version, 1 in the E-AF09 version) for reading of the weight.

    • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).

    • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

    • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

    • Power supply:
      3590E version: 12 Vdc via external power supply.
      All other versions: 110-240 Vac and built-in rechargeable battery.

    • Connectable to printers and labellers with the command drivers.

    • Available in "P" version, fitted with attached printer as standard.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID

    • OIML R134 (AF09)


3590EXP weight indicator


3590EPXP: Version with attached printer.




























 I/O SECTION



    • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module, and optional interfaces.

    • 1 RS232 serial port (optional RS485), for connection to repeater, remote scale, badge reader or digital load cells.

    • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

    • 4 optoisolated outputs (optional).

    • 2 optoisolated inputs (optional).

    • External Profibus interface (optional), for automation management.

    • Modbus RTU Protocol.

    • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.





















APPLICATION SOFTWARE



    • AF01: Totalization and formula weighing

    • AF02: Pieces/quantity counting

    • AF03: Weighbridges - Input/Output vehicle

    • AF04: Statistical checking of prepackaged goods

    • AF05: Price compunting and industrial labelling

    • AF08: Wheel and axle static weighing with 2 or various platforms

    • BATCH1: Single product dosage systems in loading and unloading
