SKU: ADC16I Group

Click here to view a specification PDF

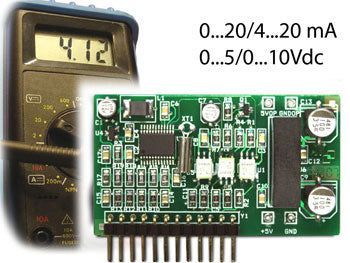

    • Reference values for input saimpling programmable from the indicator or from the PC with Dinitools: 0...5/0...10Vdc or 0...20/4...20mA.

    • 16 bit resolution (65536 divisions).

    • Reading speed: up to 100Hz (depending on the weight indicator).

    • Maximum applicable resistance on the input in current: 250 ohm.

    • Minimum applicable resistance on the input in voltage: 15 Kohm.

    • Easily configurable through the indicator or through the PC using Dinitools.

    • Available for: CPWEBELT.

    • NOTE: this board is an option available only when ordering the weight indicator.
