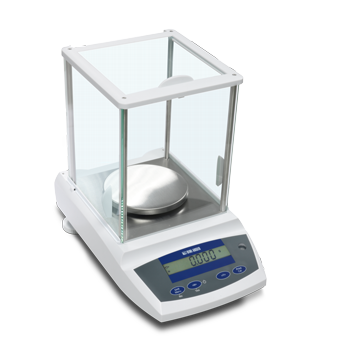

ALP SERIES ANALYTICAL "TOP-LOADING" SCALES

ALP SERIES ANALYTICAL "TOP-LOADING" SCALES
ALP SERIES ANALYTICAL "TOP-LOADING" SCALES ALP SERIES ANALYTICAL "TOP-LOADING" SCALES

Gravitation Ltd

€0,00
SKU: ALP SERIES ANALYTICAL Group-1

Click here to view a specification PDF








 TECHNICAL FEATURES



    • LCD display with 7 digits of 15mm.

    • Waterproof membrane keyboard, with 4 keys.

    • Construction: bearing structure in aluminium, ABS case.

    • Weight detection through electromagnetic balance load cell.

    • All models are fitted with automatic recalibration system.

    • Stainless steel plate, Ø 90mm (ALP214) or Ø 120mm (ALP413/ALP513)

    • Fitted with windscreen, level, and adjustable feet.

    • Weigh-below hook.

    • Working temperature: +10...+40°C (Humidity 10%...80% without condensation).

    • RS232/c port for connection to PC, 3590E series indicator or printer.

    • Dimensions:
      - Scale: (lxwxh) 320x195x290mm - approximate weight 5kg.
      - Packaging: (lxwxh) 515x395x540mm - approximate weight 8kg.

    • Power supply: standard fitted with 100-240 Vac 50Hz – 12Vdc power adapter.



























 FUNCTIONS



    • Counting.

    • % weight.

    • Units of measure conversion:
      - not approved: mg, g, kg, ct, oz, N, grain, dwt, tical, tola, momme, baht, mesghal, ozt, teal or customised;
      - approved: mg, g, kg, ct (upon request when ordering the scale).

    • Zeroing.

    • Zero tracking.

    • Semiautomatic tare.

    • Digital calibration.
