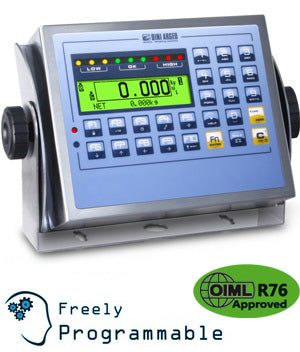

CPWET "ENTERPRISE": WEIGHT INDICATOR FOR ADVANCED INDUSTRIAL APPLICATIONS, IP68 STAINLESS STEEL

CPWET "ENTERPRISE": WEIGHT INDICATOR FOR ADVANCED INDUSTRIAL APPLICATIONS, IP68 STAINLESS STEEL

Gravitation Ltd SKU: CPWET Group

POA

Pay in 4 interest-free installments for orders over €50.00 with
Enquire Now
Collection Available
All equipment can be collected in person from our HQ
Get Directions
Description Features Delivery Returns
Click here to view a specification PDF







 MAIN FEATURES



    • Waterproof 25-key numerical functional keyboard.

    • Programmable function keys, for customising the keyboard functions according to the needs.

    • Easy to consult backlit graphic LCD display, with a clear visualisation of the weight and wide range of information.

    • Fitted with 3-way control light made up to sinoptic bar-graph with 3 groups of 3 Leds each, to tollerance check and setpoint.

    • IP68 stainless steel waterproof case, easy to clean and resistant in harsh and corrosive environments.

    • Dimensions, including support bracket: 269x58,8x183mm.

    • Suitable for use on the table, or wall.

    • Real time clock and permanent data memory.

    • Integrated alibi memory for CE-M communication with PC and printer.

    • Functions available with DINITOOLS utility
      - Configuration, calibration, data entry and print formatting.
      - Recording and filing of all the information on PC.
      - Complete retrieval of the data saved for quick substitution
      - Instrument calibration with numeric values.

    • Selection of the programme language directly in the set-up.

    • A/D 24 bit sigma-delta 4-channel conversion, up to 200 conv./sec. with automatic selection. Filtering system through programmable software, adjustable according to the system.

    • Calibration and Set-Up parameters, configurable from PC with Dinitools or with the keyboard; theoretical calibration with the entry of the characteristics of the load cells.

    • Up to 1.000.000d displayable for internal factory use.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 8 signal linearisation points with DINITOOLS.

    • Internal resolution of up to 3.000.000 points.

    • 12 Vdc power supply with external power adapter.

    • Management of a weighing system with digital equalisation of the 4 cells or management of up to 4 independent weighing systems (depending on the application software).

    • Connectable with up to 16 analogue load cells with 350 Ohm input resistance (45 1000 Ohm cells) and to the main digital load cells available on the market.

    • Connectable to printers and labellers through the available command drivers.



























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R51 - MID



























 APPLICATION SOFTWARE



    • AF01: Totalization and formula weighing

    • AF02: Pieces/quantity counting

    • AF03: Weighbridges - Input/Output vehicle

    • AF04: Statistical checking of prepackaged goods

    • AF05: Price compunting and industrial labelling

    • AF09: Dynamic and static axle weighing with 2 platforms

    • BATCH1: Single product dosage systems in loading and unloading



























 CUSTOMISED APPLICATIONS








Thanks to our integrated development, you can create complete customised applications in autonomy:



    • wizards, operator messages

    • serial port management, protocols customization

    • digital I/O full management

    • sequential or simultaneous automations

    • data entry, custom archives





















 I/O SECTION



    • 2 RS232 serial ports configurable for connection to printers, PC or PLC, radio modules or other external units.

    • 1 RS232 serial port (optional RS485)configurable for connection to repeater, bar code reader, or digital load cells.

    • Keyboard emulation input for connection to PC keyboard or bar code reader, through cable with mini DIN connector (optional).

    • 4 optoisolated outputs.

    • 2 optoisolated inputs (optional).

    • External Profibus interface (optional), for automation management (only for E-AF01 software).

    • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.
