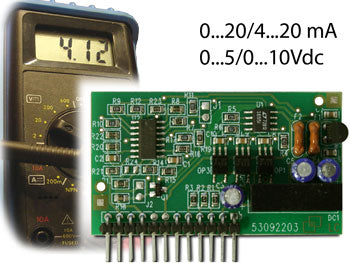

DAC16O 16bit ANALOGUE PROGRAMMABLE OUTPUT

DAC16O 16bit ANALOGUE PROGRAMMABLE OUTPUT
DAC16O 16bit ANALOGUE PROGRAMMABLE OUTPUT

Gravitation Ltd

€130,00
SKU: DAC16O Group

Click here to view a specification PDF







TECHNICAL FEATURES:



    • Output values programmable through the indicator or through the PC Dinitools: 0...5/0...10Vdc or 0...20/4...20mA.

    • 16 bit resolution (65536 divisions).

    • Update frequency: from 30 to 50Hz (depending on the weight indicator).

    • Precision: minimum 0,15%, typical 0,08% in relation to the F.S.O. of the analogue output.

    • Maximum applicable resistance on the output in current: 350 ohm.

    • Minimum applicable resistance on the output in voltage: 10 Kohm.

    • Easily configurable through the indicator or through the PC using Dinitools.

    • NOTE: this board is an option available only when ordering the weight indicator.
