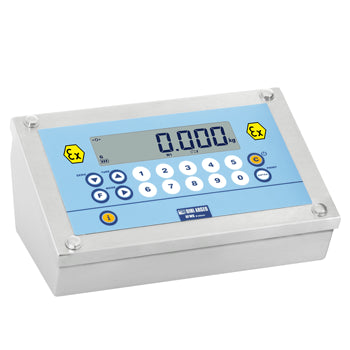

DFW "ATEX2GD": WEIGHT INDICATOR FOR ATEX 1 & 21 ZONES

DFW "ATEX2GD": WEIGHT INDICATOR FOR ATEX 1 & 21 ZONES
DFW "ATEX2GD": WEIGHT INDICATOR FOR ATEX 1 & 21 ZONES

Gravitation Ltd

€800,00
SKU: DFWATEX2GD Group-1

Click here to view a specification PDF


MAIN FEATURES



    • Waterproof 17-key numerical and functional keyboard.

    • LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions.

    • Satined IP68 stainless steel case.

    • Dimensions 264x174x115mm.

    • Suitable for use on the table, or wall.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

    • Up to 8 signal linearization points with DINITOOLS (3 from keypad).

    • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.

    • Digital calibration and set-up from keyboard; Instrument management & configuration from PC with DINITOOLS.

    • Power supply through external module: with optional battery pack; or with optional power adapter connectable to mains at 230 Vac or at 24 Vdc.

    • Connection with up to 4 load cells having 350 Ohm input resistance.



























 FUNCTIONS



    • SCALE FUNCTIONS
      -Zeroing
      - Automatic Tare
      - Presettable Tare
      - ID1 and ID2 10-digit Codes
      - Print and data transmission commands
      - selectable function command
      - on/off switching.

    • SELECTABLE FUNCTIONING MODES
      - High Resolution Weighing x 10
      -Net/Gross or lb/kg conversion
      - Accumulation
      - Formula weighing
      - +/- Checkweighing
      - Counting       (Max. resolution of 1.500.000 divisions).
      - In/Out Truck weighing
      - Hold
      - Peer-to-peer       (up to 4 remote connectable indicators).
      - Set Point Control (only in the DFWATEX2GDIO version combined with PW200XRDxxx and PW200IO options).
      - MODBUS serial protocol.




















 I/O SECTION (ONLY WITH THE DFWATEX2GDIO MODEL):



    • Fiber optic bidirectional port for connection with printer, labeller, PC, or PLC in safe area.

    • 4 logic inputs and 4 barriered digital outputs, connectable to other intrinsic safety devices in a hazardous area.
