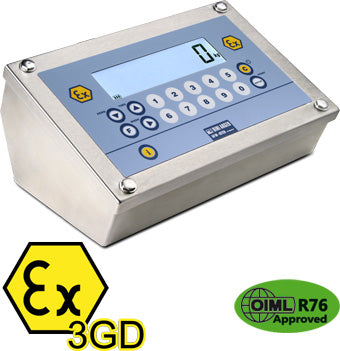

DFW "ATEX3GD": ATEX ZONE 2 & 22 - Internal Power Supply

Gravitation Ltd SKU: DFWATEX3GD group-1

€560,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
  • Description
  • Features
  • Delivery
Click here to view a specification PDF


MAIN FEATURES



    • Waterproof 17-key functional keypad.

    • Backlit LCD display with 6 25-mm high contrast digits and with indication of active functions.

    • Satined IP68 stainless steel case.

    • Suitable for use on the table, or wall.

    • Dimensions: 264x174x115mm.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 1.000.000 displayable divisions for internal factory use.

    • Up to 8 signal linearization points with DINITOOLS (3 from keypad).

    • Internal resolution up to 3.000.000 points.

    • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.

    • Board protection case inside the box.

    • Digital calibration and set-up from keyboard.

    • Instrument management & configuration from PC with DINITOOLS.

    • 4 channels (for single weighing system).

    • Power supply:
      DFWATEX3GD: through 110-240Vac internal power adapter;
      DFWATEX3GDB: through optional external battery (BP6ESTATEX3GD code), rechargeable in safe area. Battery charger not included.

    • Connection with up to 8 load cells with 350 Ohm input resistance.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76





























 I/O SECTION



    • RS232/C port configurable for connection to printer/labeller in safe zone.

    • RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, additional remote display, in safe zone.





























 FUNCTIONS



    • KEYBOARD:
      Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, database of 10 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.

    • SELECTABLE FUNCTIONS:
      - High Resolution Weighing x 10.
      - Net/Gross or lb/kg conversion.
      - Accumulation.
      - Formula weighing.
      - +/- Checkweighing.
      - Percentage weighing.
      - Approved transmission of the weight to PC/PLC (with Alibi memory ALMEM option).
      - Counting(Max. resolution of 1.500.000 divisions).
      - In/Out Truck weighing.
      - Hold.
      - Set Point Control (with DFIO option).
