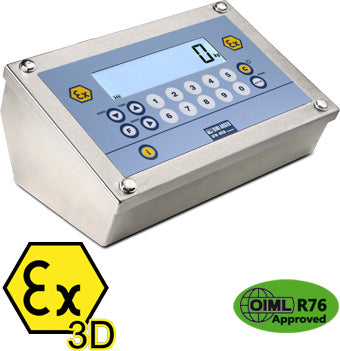

"DFWATEX3D": WEIGHT INDICATOR FOR ATEX 22 ZONES

Click here to view a specification PDF

MAIN FEATURES

Waterproof 17-key functional keypad.

Backlit LCD display with 6 25-mm high contrast digits and with indication of active functions.

Satined IP65 stainless steel case.

Suitable for use on the table, or wall.

Dimensions: 264x174x115mm.

Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

Up to 1.000.000 displayable divisions for internal factory use.

Up to 8 signal linearization points with DINITOOLS (3 from keypad).

Internal resolution up to 3.000.000 points.

A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.

Board protection case inside the box.

Digital calibration and set-up from keyboard.

Instrument management & configuration from PC with DINITOOLS.

4 channels (for single weighing system).

110-240 Vac power supply through fitted internal power adapter or fitted 6V 4,5Ah battery, rechargeable in safe zone.

Connection with up to 8 load cells with 350 Ohm input resistance.

MAIN CERTIFICATIONS

EC Type Approval (EN45501)

OIML R76


I/O SECTION

RS232/C port configurable for connection to printer/labeller in safe zone.

RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, additional remote display, in safe zone.

FUNCTIONS

KEYBOARD:
Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, database of 10 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.

SELECTABLE FUNCTIONS:
- High Resolution Weighing x 10.
- Net/Gross or lb/kg conversion.
- Accumulation.
- Formula weighing.
- +/- Checkweighing.
- Percentage weighing.
- Approved transmission of the weight to PC/PLC (with Alibi memory ALMEM option).
- Counting(Max. resolution of 1.500.000 divisions).
- In/Out Truck weighing.
- Hold.
- Set Point Control (with DFIO option).
