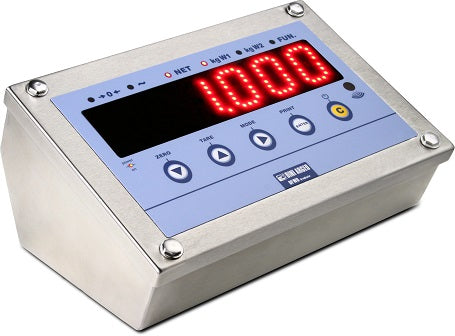

"DFWDXT": INDICATOR WITH LARGE BRIGHT SMD LED DISPLAY

Gravitation Ltd SKU: DFWDXT Group

€455,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
  • Description
  • Features
  • Delivery
Click here to view a specification PDF



 MAIN STANDARD FEATURES



    • Waterproof 5-key functional keypad.

    • 6 large and very bright 40 mm LED digits, easily visible from all angles and from great distances, with an adjustable brightness intensity.
      The SMD technology guarantees a high efficiency and brightness, also in full sunlight.

    • 6 LED for indication of active functions.

    • Stainless steel case with IP68 protection against rain and dust, easy to clean and resistant in harsh and corrosive environments.

    • Suitable for use on the table, or wall.

    • Dimensions 264x174x115mm.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

    • Up to 8 signal linearization points.

    • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.

    • Digital calibration and set-up from keyboard or from PC with DINITOOLS™.

    • Power supply 110-240Vac or 6 Vdc through fitted built-in rechargeable battery.

    • Connection with up to 8 load cells with 350 Ohm input resistance.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76





























 FUNCTIONS



    • KEYBOARD:
      Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.

    • SELECTABLE FUNCTIONS:
      - High Resolution Weighing x 10.
      - Net/Gross or lb/kg conversion.
      - Accumulation.
      - Formula weighing.
      - +/- Checkweighing.
      - Percentage weighing.
      - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option).
      - Counting(Max. resolution of 1.500.000 divisions).
      - In/Out Truck weighing.
      - Hold and Peak.
      - Set Point Control (with DFIO option).





























 AVAILABLE FUNCTIONS FROM REMOTE CONTROL



    • Infrared 19-key remote control: zero, tare / manual tare, enable / disable function, print, switch-off.

    • Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.






















I/O SECTION



    • RS232/C port configurable for connection with printer/labeler, or for attached printer.

    • RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem. Quick RJ RS232 plug connection.
