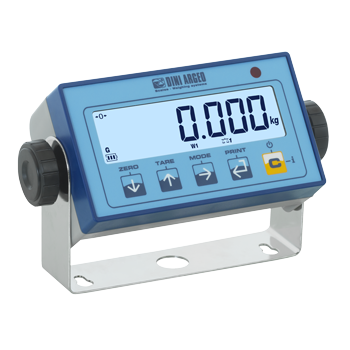

DFWL WEIGHT INDICATOR
DFWL WEIGHT INDICATOR
DFWL WEIGHT INDICATOR

DFWL WEIGHT INDICATOR

Gravitation Ltd SKU: DFWL INDICATOR

€195,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF





 MAIN FEATURES:



    • 5-key functional waterproof keypad.

    • Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.

    • Easy to clean ABS IP54 case, resistant to harsh and corrosive environments.

    • Suitable for use on the table, column, or wall.

    • Fitted with fixing bracket with adjustable inclination.

    • A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved versions for legal for trade use.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

    • Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.

    • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.

    • Power supply from 5 to 12Vdc.

    • Supplied as standard with 4 AA batteries extractable drawer (batteries not included), and 12V external power adapter (if connected it excludes the battery supply).



























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76



























 SELECTABLE FUNCTIONS:



    • KEYBOARD:
      Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.

    • SELECTABLE FUNCTIONS:
      - High Resolution Weighing x 10.
      - Net/Gross or lb/kg conversion.
      - Accumulation.
      - Formula weighing.
      - +/- Checkweighing.
      - Percentage weighing.
      - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option).
      - Counting(Max. resolution of 1.500.000 divisions).
      - In/Out Truck weighing.
      - Hold and Peak.
