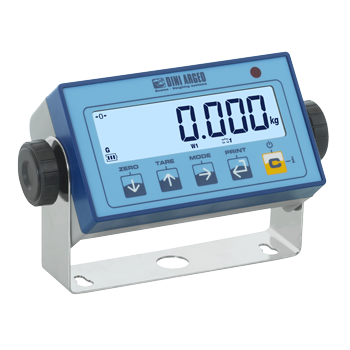

"DFWLB": MULTIFUNCTION IP68 WEIGHT INDICATOR FOR INDUSTRY

Gravitation Ltd

€220,00 €255,00
SKU: DFWLB Indicator

Click here to view a specification PDF




MAIN FEATURES



    • 5-key functional waterproof keypad.

    • Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.

    • Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.

    • Suitable for use on the table, column, or wall.

    • Fitted with fixing bracket with adjustable inclination.

    • A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved versions for legal for trade use.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

    • Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.

    • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.

    • Power supply through built-in rechargeable battery, with 60h operating time, and fitted with external 12Vdc battery charger.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76





























 FUNCTIONS



    • MAIN FUNCTIONS:
      - Zeroing
      - Automatic tare
      - Presettable tare
      - Printing in 1, 2 or 3 copies
      - Data transmission to PC.


    • OPERATING MODES:
      - High Resolution Weighing x 10
      - Net/Gross or lb/kg conversion
      - Accumulation
      - Formula weighing
      - +/- Checkweighing
      - Percentage weighing
      - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option)
      - Counting
      - In/Out Truck weighing
      - Hold and Peak.





























 I/O SECTION



    • RS232/C bidirectional port on RJ11 connector for quick connection (optional RS485) on screw terminal, configurable for PC, PLC, or additional remote display.

    • RS232/C bidirectional port configurable for connection to printer or labeller.
