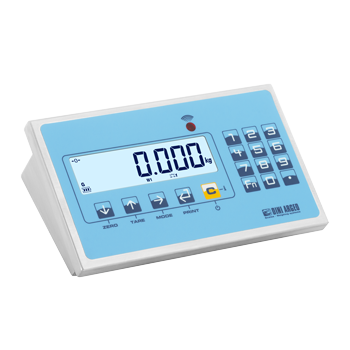

"DFWLI-DFWLKI": STAINLESS STEEL IP68 MULTIFUNCTION WEIGHT INDICATOR

Gravitation Ltd

€270,00 €320,00
SKU: DFWLI / DFWLKI-1

Click here to view a specification PDF

MAIN FEATURES:



    • Waterproof 5-key functional or 17-key numeric-functional keypad.

    • LCD 25mm backlit display with 6 high contrast digits and icons for indication of active functions.

    • Waterproof IP68 STAINLESS STEEL case, with sealed rubber gasket, easy to clean and resistant in harsh and corrosive environments.

    • Dimensions in mm: 243x145x78,4 mm.

    • Suitable for use on the table, column, or wall.

    • A/D 24 bit converter, 4 channels, up to 200 conv./sec. autoselect and up to 8 signal linearisation points.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 1.000.000 displayable divisions with built-in resolution up to 3.000.000 points.

    • Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.

    • Digital calibration and set-up from keypad or from PC with DINITOOLS.

    • Power supply 110-240 Vac.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76





























 FUNCTIONS:



    • KEYBOARD:
      Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.
      17-key Version: Database of 10 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.

    • SELECTABLE FUNCTIONS:
      - High Resolution Weighing x 10.
      - Net/Gross or lb/kg conversion.
      - Accumulation.
      - Formula weighing.
      - +/- Checkweighing.
      - Percentage weighing.
      - Approved transmission of the weight to PC/PLC (with Alibi memory ALMEM option).
      - Counting (Max. resolution of 1.500.000 divisions).
      - In/Out Truck weighing.
      - Hold and Peak.
