DFWPM "PLAY MOBILE": PORTABLE WEIGHT REPEATER

Gravitation Ltd

POA

SKU: DFWPM Group


TECHNICAL FEATURES



    • Backlit LCD 25 mm LCD display with 6 high contrast digits with icons for indicating the active functions.

    • 6 Vdc power supply, with extractable battery box, for functioning with 4 AA batteries.

    • Keypad with 5 keys, in polycarbonate.

    • Compact and sturdy case, easy to clean and resistant in harsh and corrosive environments.

    • Digital Set-Up from keypad or from PC with DINITOOLS.

    • Memory for recording the weighs (standard fitted with the DFWPM10USB model).




 SERIAL PORTS


    • 868Mhz integrated radio modem, with 50 different frequency channels, easily programmable from PC, for communication with indicator, scale and crane scale.

    • USB port (standard fitted with the DFWPM10USB model), for quick connection to the PC.

  • Infrared receiver for functioning with remote control.

 FUNCTIONING MODES


    • Multi-scale repeater (MASTER):
      function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying the sum of the weighs of all the scales.


    • UNIVERSAL weight repeater:
      function which allows to repeat the weight of any scales, through the configuration of the input string.




 AVAILABLE FUNCTIONS IN MASTER MODE



    • Management of the functions of the displayed scale:ZERO, TARE, PRINT, ENABLING/DISABLING of the FUNCTIONING MODE and SWITCH-OFF.


    • Recording in memory (DFWPM10USB model) the weight of the single connected scales or the sum of the weights, for a total of 500 memory storages.


    • Connection to the PC through USB port for reading the list of weighs, through commands or by using the fitted "Weigh Console" software.


DFWPM: radio frequency weight repeater
for DFW indicators and MCW crane scales.

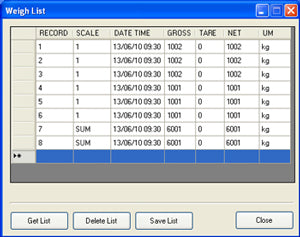

Reading the list of weighs from "Weigh Console" software with the possibility to save in "Excel" or *.csv format. For more information see the technical data sheet.
