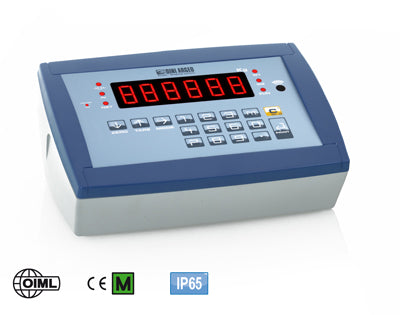

"DFWR": INDICATOR WITH VERY BRIGHT LED DISPLAY

Gravitation Ltd

€320,00 €360,00
SKU: DFWRXP Group-1

Click here to view a specification PDF

MAIN STANDARD FEATURES



    • Waterproof 17-key functional keyboard.

    • Very bright red LED display with 6 digits 25 mm high; easily visible from all angles and from long distances, with adjustable brightness intensity.

    • Complete of 6 Leds for showing the active functions.

    • Waterproof ABS IP65 case, easy to clean and resistant to harsh and corrosive environments.

    • Dimensions in mm: 278x125x186.

    • Suitable for use on the table, column, or wall.

    • Fitted with attached thermal printer and real time clock in the DFWRP version.

    • A/D 24 bit, 4 channel converter, up to 200 conv./sec. autoselect, and up to 8 signal linearisation points.

    • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 1.000.000 divisions displayable with built-in resolution up to 3.000.000 points.

    • Calibration and digital Set-Up from the keyboard or from PC with DINITOOLS.

    • Built-in rechargeable battery (60 hours with a 350 Ohm load cell) and internal 110-240 Vac adapter.

    • Connection with up to 8 load cells having an input resistance of 350 Ohm or with up to 16 cells of 700 Ohm.





























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76





























 I/O SECTION



    • RS232/C port configurable for connection with printer/labeller, or for attached printer.

    • RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem.
      Quick RJ RS232 plug connection.





























 FUNCTIONS



    • KEYBOARD:
      Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, Database of 10 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.

    • SELECTABLE FUNCTIONS:
      - High Resolution Weighing x 10.
      - Net/Gross or lb/kg conversion.
      - Accumulation.
      - Formula weighing.
      - +/- Checkweighing.
      - Percentage weighing.
      - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option).
      - Counting(Max. resolution of 1.500.000 divisions).
      - In/Out Truck weighing.
      - Hold and Peak.
      - Set Point Control (with DFIO option).





























 AVAILABLE FUNCTIONS FROM REMOTE CONTROL



    • Infrared 19-key remote control: zero, tare / manual tare, enable / disable function, print, switch-off.

    • Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.
