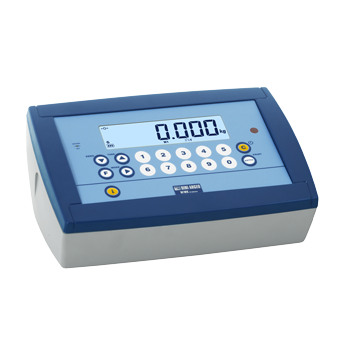

DFWXP: IP65 MULTIFUNCTION WEIGHT INDICATOR

Gravitation Ltd

€290,00 €340,00
SKU: DFWXP Group-1

Click here to view a specification PDF



MAIN FEATURES



    • 5-key functional or 17-key numerical and functional waterproof keypad.

    • 25mm LCD backlit display with 6 high contrast digits with icons indicating the active functions.

    • Easy to clean ABS waterproof IP65 enclosure built to withstand harsh treatment and corrosive environments

    • Dimensions in mm: 278x125x186 mm

    • Suitable for use on the table, column, or wall.

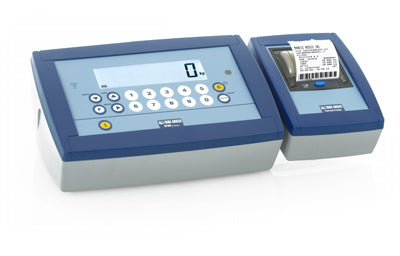

    • The "...PXP..." versions are fitted with attached thermal printer and real time clock.

    • 24-bit A/D converter, 4 channels, up to 200 conv./sec. and up to 8 signal linearisation points

    • Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points

    • Digital calibration and set-up through keyboard or PC with DINITOOLS

    • Built-in rechargeable battery (60 hours with one 350-Ohm load cell) and 110-240 Vac internal power adapter

    • Connectable with up to 8 350-Ohm load cells or up to 16 700-Ohm load cells.





























 I/O SECTION



    • RS232/C port configurable for connection with printer/labeller, or for attached printer.

    • RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem.
      Quick RJ RS232 plug connection.





























 FUNCTIONS



    • KEYBOARD:
      Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.
      17-key Version: Database of 10 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.

    • SELECTABLE FUNCTIONS:
      - High Resolution Weighing x 10.
      - Net/Gross or lb/kg conversion.
      - Accumulation.
      - Formula weighing.
      - +/- Checkweighing.
      - Percentage weighing.
      - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option).
      - Counting(Max. resolution of 1.500.000 divisions).
      - In/Out Truck weighing.
      - Hold and Peak.
      - Set Point Control (with DFIO option).





























 AVAILABLE FUNCTIONS FROM REMOTE CONTROL



    • Infrared 19-key remote control: zero, tare / manual tare, enable / disable function, print, switch-off.

    • Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.
