DGTPK DIGITAL WEIGHT TRANSMITTER-INDICATOR WITH EXTENDED KEYBOARD

DGTPK DIGITAL WEIGHT TRANSMITTER-INDICATOR WITH EXTENDED KEYBOARD
DGTPK DIGITAL WEIGHT TRANSMITTER-INDICATOR WITH EXTENDED KEYBOARD

Gravitation Ltd

POA

SKU: DGTPK Group-1
Click here to view a specification PDF







MAIN FEATURES



    • 20-key numeric/functional waterproof keyboard: quick entry of the setpoints and the tare value.

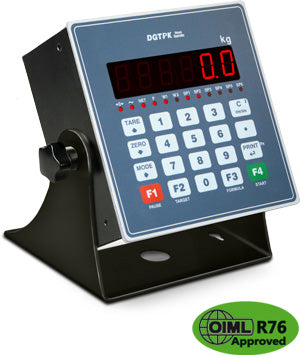

    • Highly efficient red LED display with 6 20-mm digits and 12 LEDs for showing active functions.

    • Case for panel mounting. Front panel dimensions: 170x170mm.

    • Drill template: 161x162mm.

    • Fitted with bracket for use on table or wall mounting. A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.

    • Connectable with up to 16 analogue load cells with 350 Ohm input resistance.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

    • Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.

    • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINITOOLS.

    • Up to 8 signal linearization points with DINITOOLS (3 from keypad).

    • Time/Date

    • From 12 Vdc to 24 Vdc power supply.



























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R61 - MID



























 TRANSMITTER / INDICATOR: FUNCTIONS



    • THROUGH KEYBOARD:
      Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.
      Quick entry of the setpoints and the tare values.

    • SELECTABLE:
      High Resolution Weighing x 10; Net/Gross or lb/kg conversion; Weighs totalisation; Formulation; Counting; In/Out Truck weighing; Hold e Peak.

    • EXTERNAL INPUT:
      Simulation of key pressure; Keyboard lock.

    • MOSFET OUTPUT:
      Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.

    • SERIAL PORTS:
      On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds.
      DGTPKV2 and DGTPKANV2 models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.

    • THROUGH 16 bit ANALOGUE OUTPUT (DGTPKANV2):
      Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).



























 MASTER/REPEATER OPTION (MSTSLV code)



    • Specific programme for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

      FUNCTIONING MODES:

    • Multi-scale repeater (MASTER):
      function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.

    • UNIVERSAL weight repeater:
      function which allows to repeat the weight of any scales, through the configuration of the input string.





















 I/O SECTION



    • 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.

    • 1 RS232/C bidirectional port configurable for connection to printer.

    • PROFIBUS serial interface (DGTPKPBV2 model).

    • 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.

    • 4 optoisolator photocouplers inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.

    • 16-bit analogue output (DGTPKANV2 model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 350Ohm. Minimum load applicable on the output voltage: 10kOhm.
