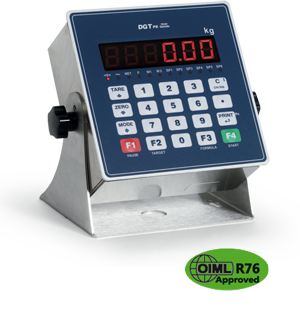

DGTPKF MICROCONTROLLER FOR INDUSTRIAL DOSAGE SYSTEMS WITH EXTENDED KEYBOARD

Gravitation Ltd

POA

SKU: DGTPKF Group-1
Click here to view a specification PDF

 MAIN FEATURES


    • 20-key numeric/fundtional waterproof keyboard: quick entry of the setpoints and the tare value.

    • Highly efficient red LED display with 6 20-mm digits and 12 LEDs for showing active functions.

    • Stainless steel case for panel mounting.

    • Frontal panel in alluminium, with protection gasket.

    • Fitted with stainless steel bracket, for bench use or fixing to wall.

    • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.

    • Management of a weighing system from 1 to 4 channels (cells) with digital equalization.

    • Connectable with up to 16 analogue load cells with 350 Ohm input resistance.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

    • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.

    • Up to 8 signal linearization points with DINITOOLS (3 from keypad).

    • Time/Date

    • Memory back-up for recording dosage data in case it’s accidentally turned off.

    • Printing the dosage and consumption data.

    • From 12 Vdc to 24 Vdc power supply.

  • Fitted with 12 V switching power adapter.


 MAIN CERTIFICATIONS


    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R61 - MID




 I/O SECTION


    • 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.

    • 1 RS232/C bidirectional port configurable for connection to printer.

    • Six 150 mA 48 Vac / 150 mA 60 Vdc (NO) photomosfet outputs configurable according to the selected dosage function.

    • 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.

    • 4 inputs (optoisolator photocouplers) configurable as: 12÷24 Vdc, 5 mA min - 20 mA max with functions dependent on the selected dosage function.

  • Analogue 16 bit output (only for DGTPKFANV2 model), configurable as 4-20mA, 0-5Vdc or 0-10Vdc. Maximum load applicable on the output current: 350Ohm. Minimum load applicable on the output voltage: 10kOhm.
