DGTQ TRANSMITTER-INDICATOR

DGTQ TRANSMITTER-INDICATOR

Gravitation Ltd SKU: DGTQ Group-1

POA

Pay in 4 interest-free installments for orders over €50.00 with
Enquire Now
Collection Available
All equipment can be collected in person from our HQ
Get Directions
Description Features Delivery Returns
Click here to view a specification PDF







 MAIN FEATURES



    • Easy to use 5-key waterproof keyboard.

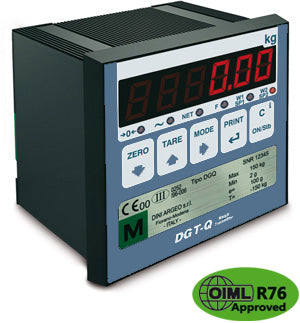

    • Highly efficient red LED display with 6 13-mm digits and 6 LEDs for showing active functions.

    • Case for panel mounting in Abs according to DIN standard, 96x96x80 mm (lxhxpx). Perforation 90x88 mm (lxh) for panel mounting.

    • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS

    • Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.

    • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

    • Up to 8 signal linearization points with DINITOOLS (3 from keypad).

    • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.

    • Connectable with up to 16 analogue load cells with 350 Ohm input resistance.

    • Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.

    • Master/Slave management (up to 4 Slaves / 1 Master).

    • From 12 Vdc to 24 Vdc power supply.



























 MAIN CERTIFICATIONS



    • EC Type Approval (EN45501)

    • OIML R76

    • OIML R61 - MID



























 TRANSMITTER / INDICATOR: FUNCTIONS



    • THROUGH KEYBOARD:
      Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.

    • SELECTABLE:
      High Resolution Weighing x 10; Net/Gross or lb/kg conversion; Weighs totalisation; Formulation; Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option); Counting; In/Out Truck weighing; Hold e Peak.

    • EXTERNAL INPUT:
      Simulation of key pressure; Keyboard lock.

    • MOSFET OUTPUT:
      Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.

    • SERIAL PORTS:
      On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
      DGTQ and DGTQAN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.

    • THROUGH 16 bit ANALOGUE OUTPUT (DGTQAN):
      Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).



























 MASTER/REPEATER OPTION (MSTSLV code)



    • Specific programme for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

      FUNCTIONING MODES:

    • Multi-scale repeater (MASTER)
      function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.

    • UNIVERSAL weight repeater
      function which allows to repeat the weight of any scales, through the configuration of the input string.












dimensions in mm.



























 I/O SECTION



    • RS232/C bidirectional port configurable for connection with external units.

    • RS485 or RS232/C bi-directional port configurable for network connection.

    • PROFIBUS serial interface (DGTQPB model).

    • 2 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.

    • 2 optoisolator photocoupler inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.

    • 16-bit analogue output (DGTQAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 350Ohm. Minimum load applicable on the output voltage: 10kOhm.
