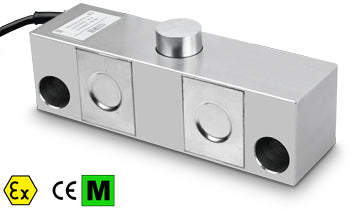

DSBI SERIES DOUBLE SHEAR BEAM STAINLESS STEEL LOAD CELLS

Gravitation Ltd SKU: DSBI10

€345,00 €385,00 Save €40

Pay in 4 interest-free installments for orders over €50.00 with
Collection Available
All equipment can be collected in person from our HQ
Please click here for a specification PDF

TECHNICAL FEATURES



    • C4 PRECISION CLASS

    • 17-4 PH STAINLESS STEEL CONSTRUCTION

    • IP68 PROTECTION

    • MAX. CAPACITIES FROM 10000 TO 30000 kg

    • SHIELDED CONNECTION CABLE

    • TEST CERTIFICATE AVAILABLE UPON REQUEST








 MAIN FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 10.000

    • Combined error 0,03% of Full Scale Output (F.S.)

    • Full Scale Output: 2mV/V +/- 0,1%

    • Temperature effect on zero: 0,00116% /°C

    • Temperature effect on full scale output: 0,00097% /°C

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -30°C/+85°C

    • Creep error after 30 minutes: <0,02% F.S.

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 700 ± 7 Ohm

    • Output Resistance: 700 ± 7 Ohm

    • Zero Balance: +/- 1% F.S.

    • Insulation Resistance: >5000 MOhm

    • Safe Overload: 150% F.S.

    • Ultimate Overload: 300% F.S.

    • 6-wire shielded cable, 15m long





























 ATEX VERSION



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.



dimensions in mm





































Wiring Code

Colour
Function

GREEN
OUTPUT +

PURPLE
SENSE +

RED
INPUT +

WHITE
OUTPUT -

BLACK
INPUT -

GREY
SENSE -
