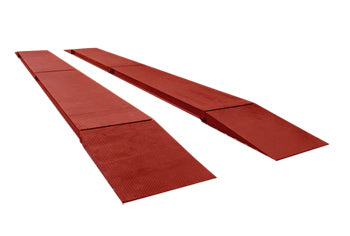

DTW "DUAL TRACK" VEHICLE WEIGHBRIDGE

Gravitation Ltd

POA

SKU: DTW Series-1
Click here to view our Specification PDF Click here to view our Specification PDF







TECHNICAL FEATURES



    • Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.

    • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.

    • Sturdy loading surface in striated sheet steel, made up of pairs of modules, sized to withstand any load on the basis of the parameters dictated by the 96/53/EEC directive (maximum load on single axle for the vehicles transiting in Europe).

    • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.

    • Installable above, as well as flush floor to the street surface.

    • Reinforced on and off ramps, for mobile or fixed installation (optional).

    • Weight detection system through oscillating load bars (patented system) with integrated brake / acceleration compensating limits and anti-slip rubber resting plates.

    • Load cells protected from dust and water.

    • Fitted with approval, carried out in factory (to be combined with Dini Argeo indicator).

    • Dust and waterproof wirings and connections, easy to connect and disconnect.

    • Modularity: by adding or removing pairs of modules, the weighbridges can have these lengths: 4,5 m - 9 m - 13,5 m - 18 m - 22,5 (up to 36m by price estimate).

    • Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the weighbridge also without an electrical power supply.

    • 30m long connection cable between DTW and indicators.





























 OPTIONS AND ACCESSORIES



    • Transport (upon price estimate).

    • Kit of on/off mobile ramps.

    • Angles of crest kit for flush floor installation or for concrete on/off ramps.

    • Dual range CE-M 3000 + 3000e approved (upon price estimate).
