Weight indicator with support bracket having an adjustable inclination, for use on the table, column, or wall.
LCD 25mm backlit display with 6 high contrast digits and icons for indication of active functions.
ABS IP54 case, easy to clean and resistant in harsh and corrosive environments.
Waterproof 5-key functional keypad.
Functions with 4 shear beam 1000 Ohm aluminium load cells approved according to OIML R60 C3 standards (3000+3000 divisions), IP67 protection degree, able to handle double the nominal load.
Carbon steel oven-fire painted bearing structure, complete of adjustable feet.
Level, wheels, and transport handle.
Connection cable to the indicator, 3 m long.
Accuracy: +/-0,05% of the capacity.
Programmable automatic switch-off.
Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
Power supply from 5 to 12 Vdc
Standard fitted with extractable drawer for housing 4 AA batteries (not included), which may be rechargeable, and standard connector for connection to external power adapter (if connected, it excludes the battery power).
SELECTABLE AND KEYPAD FUNCTIONS
Clearing; automatic and manual tare, print.
X 10 High resolution visualisation.
Net/Gross or lb/kg conversion.
Alibi, for approved weight transmission (optional).

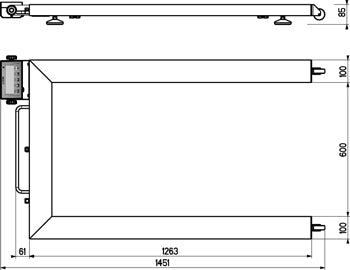

Values in mm
RS232/C bidirectional port on RJ connector for quick connection (USB or RS485 optionally), configurable for PC, PLC, additional remote display.
RS232/C bidirectional port for connection to printer or labeller.
