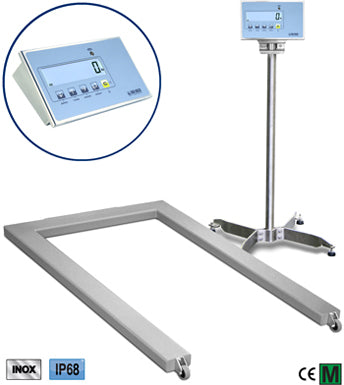

EPWLI “LOGISTIC” STAINLESS STEEL PALLET-WEIGHING FLOOR SCALES SERIES

Gravitation Ltd

€1.670,00 €1.970,00
SKU: EPWLI Series-1

Click here to view our Specification PDF







 MAIN FEATURES



    • Weight indicator with support bracket having an adjustable inclination, for use on the column (optional), wall (optional adjustable support) or table.

    • Stainless steel IP68 case, easy to clean and resistant in harsh and corrosive environments.

    • Waterproof 5-key functional keypad.

    • LCD 25mm backlit display with 6 high contrast digits and icons for indication of active functions.

    • Functions with 4 shear beam 1000 Ohm stainless steel load cells approved according to OIML R60 C3 standards (3000+3000 divisions), IP68 protection degree, able to handle double the nominal load.

    • Sheet-stainless steel structure and load surface, complete of adjustable feet.

    • Level, wheels, and transport handle.

    • Connection cable to the indicator, 3 m long.

    • Accuracy: +/-0,05% of the capacity.

    • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.

    • Power supply 110-240Vac.





























 SELECTABLE AND KEYPAD FUNCTIONS



    • Clearing; automatic and manual tare, print.

    • X 10 High resolution visualisation.

    • Net/Gross or lb/kg conversion.

    • Accumulation.

    • Formula weighing.

    • +/- Checkweighing.

    • Percentage weighing.

    • Alibi, for approved weigh transmission (optional).

    • Counting.

    • Input/Output.





























 I/O SECTION:



    • RS232/C bidirectional port on RJ connector for quick connection (USB or RS485 optionally), configurable for PC, PLC, additional remote display.

    • RS232/C bidirectional port for connection to printer or labeller.





















 DIMENSIONS mm



    • Values in mm
