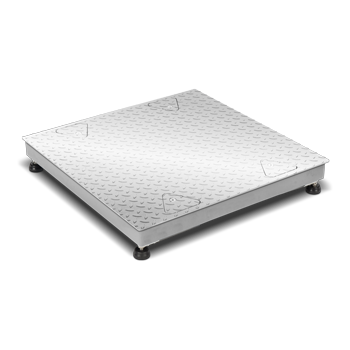

"ESI" SERIES 4-CELL STAINLESS STEEL 600x600mm PLATFORMS

Gravitation Ltd

€2.040,00 €2.400,00
SKU: "ESI" SERIES Group-1

Click here to view a specification PDF







MAIN FEATURES



    • Fitted with 4 bending beam, stainless steel, approved load cells with IP68 protection from dust and water.

    • Very sturdy monobloc steel tubular structure with fixed stainless steel chequered loading surface.

    • IP68 junction box.

    • Adjustable, antislip feet and level.

    • Up to 15 Vdc power supply.

    • Shielded 5m long 6-pin cable with connectors for connection to the indicator.





























 OPTIONS FOR ATEX VERSION



    • CCATEX: ATEX certificate for each load cell.

    • JB4QA: ATEX certified junction box.

    • DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).





























 ACCESSORIES



    • Indicator support stand.

    • Pit frame for flush floor installation.

    • ESI series electronic weighing platforms


      dimensions in mm
