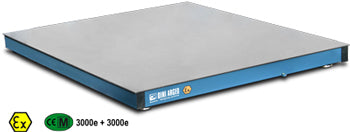

ET SERIES 4-CELL PLATFORMS
ET SERIES 4-CELL PLATFORMS
ET SERIES 4-CELL PLATFORMS

ET SERIES 4-CELL PLATFORMS

Gravitation Ltd SKU: ET Series Group-1

€1.695,00 €1.995,00 Save €300

Shipping calculated at checkout

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF


































MAIN FEATURES



    • Fitted with 4 STAINLESS STEEL shear-beam approved load cells each with 350 Ohm input resistance and made according to OIML R60 standards with protection against dust and under water immersion according to IP68 standards.

    • Steel tubular bearing structure, oven-fire painted in RAL 5007 blue; removable loading surface made in extra thick chequered galvanised steel; inspectionable trapdoor housing the junction box.

    • Adjustable, stainless steel shock-proof jointed feet and level. Up to 15 Vdc power supply.

    • Junction box and wiring cables with sheathing according to IP67 standards, and shielded 5m long 6-pin cable for connection to the indicator complete with connectors.



























 OPTIONS ONLY AVAILABLE AT TIME OF ORDER



    • Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval.

    • Stainless steel surface.

    • High resolution models for internal factory use.



























 OPTIONS FOR ATEX VERSION



    • CCATEX: ATEX certificate for each load cell.

    • JB4QA: ATEX certified junction box.

    • DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).









      WARNING
      With ATEX weighing systems, when directly weighing light metals (such as aluminum, magnesium, titanium and their alloys), it is necessary to use the STAINLESS STEEL loading surface.













DOWNLOAD

































































































Mod./Dim. L P H A B F
ETA 1000 1000 90 850 850 60
ETM 1000 1250 90 850 1100 60
ETB 1250 1250 90 1070 1070 60
ETD 1250 1500 115 1070 1320 60
ETE 1500 1500 115 1320 1320 60
ETF 1500 2000 130 1300 1800 60
ETG 1500 2000 150 1300 1800 60
ETH 1500 2500 180 1280 2280 60
ETL 2000 2500 180 1780 2280 60

dimensions in mm




























 ACCESSORIES



    • Indicator support column.

    • Frames for flush floor installation.

    • Access ramps.

    • Special sizes and capacities upon estimate.
