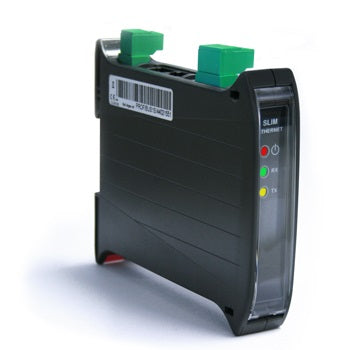

ETH1S TCP\IP - UDP ETHERNET INTERFACE FOR DIN RAIL

ETH1S TCP\IP - UDP ETHERNET INTERFACE FOR DIN RAIL
ETH1S TCP\IP - UDP ETHERNET INTERFACE FOR DIN RAIL ETH1S TCP\IP - UDP ETHERNET INTERFACE FOR DIN RAIL ETH1S TCP\IP - UDP ETHERNET INTERFACE FOR DIN RAIL

Gravitation Ltd

€145,00
SKU: ETH1S Group

Click here to view a specification PDF



TECHNICAL FEATURES

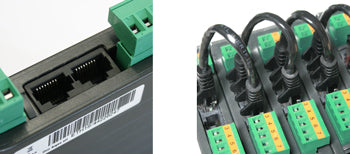

    • Network connector: RJ45 standard

    • Network interface: 10/100 Base-T

    • Supported protocols: TCP, UDP, DHCP, HTTP, ICMP, uPnP, ARP

    • Visual indications: 2 LEDs
      - Green LED: ON when it is connected to the 10/100 Base-T mains.
      - Yellow LED: ON in the presence of the mains activity.

    • Operating temperature: -40°C +85°C

    • Power supply: from 12 to 24Vdc

    • Max. absorption: 350 mA.










      In case of installation in existing systems, it is recommended to consult the manual to verify compatibility with devices in use.
