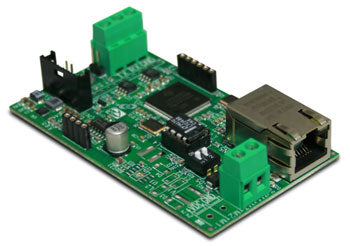

ETHD ETHERNET INTERFACE FOR INDICATORS

Gravitation Ltd

€150,00
SKU: ETHD Group

Click here to view a specification PDF



 TECHNICAL FEATURES



    • Connection to the mains through the standard RJ45 connector

    • Mains interface: 10/100 Base-T

    • Supported protocols: TCP, UDP, DHCP, HTTP, ICMP, uPnP, ARP

    • Size: Height = 50 mm; Width = 87 mm.

    • Visual indications: 2 LEDs
      - Green LED: ON when it is connected to the 10/100 Base-T mains.
      - Yellow LED: ON in the presence of the mains activity.

    • Operating temperature: -20°C +85°C

    • Power supply: from 5 to 12Vdc

    • Max. absorption: 350 mA.











      The accessory may be ordered only combined with a suitable weight indicator.











      In case of installation in existing systems, it is recommended to consult the manual to verify compatibility with devices in use.





ETHERNET interface for internal installation


Programming accessible by the integrated web interface.
It does not require any other pc application for the configuration.
