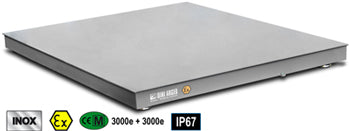

ETI "PROFESSIONAL" SERIES 4-CELL STAINLESS STEEL PLATFORMS

Gravitation Ltd

€1.980,00 €2.330,00
SKU: ETI "PROFESSIONAL" SERIES Group-1

Click here to view a specification PDF







MAIN FEATURES



    • Fitted with 4 STAINLESS STEEL shear-beam OIML approved load cells each with 350 Ohm input resistance with protection against dust and immersion according to IP68 standards.

    • Stainless steel bearing tubular structure, with removable stainless steel plate (except for the ELCI models which have a non removable plate) and IP67 junction box housing.

    • Adjustable, stainless steel shock-proof jointed feet and level.

    • Up to 15 Vdc power supply.

    • Hermetic junction box and wiring cables with sheathing according to IP67 standards, and shielded 5m long 6-pin cable with connectors for connection to the indicator.





























 OPTIONS ONLY AVAILABLE AT TIME OF ORDER



    • Connection to the indicator and calibration with CE-M 3000e single range or 3000 + 3000e dual range approval.

    • High resolution models for internal factory use.





























 OPTIONS FOR ATEX VERSION



    • CCATEX: ATEX certificate for each load cell.

    • JB4QA: ATEX certified junction box.

    • DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).





























 EXTRAS AVAILABLE



    • Indicator support stand.

    • Frames for flush floor installation.

    • Access ramps.

    • Models with special sizes and capacities.











































































































Mod./Dim. L P H A B F
ELCI 800 800 90 650 650 60
ETAI 1000 1000 90 850 850 60
ETMI 1000 1250 90 850 1070 60
ETBI 1250 1250 90 1070 1070 60
ETDI 1250 1500 115 1070 1320 60
ETEI 1500 1500 115 1320 1320 60
ETFI 1500 2000 130 1300 1800 60
ETGI 1500 2000 150 1300 1800 60
ETHI 1500 2500 180 1280 2280 60
ETLI 2000 2500 180 1780 2280 60

dimensions in mm
