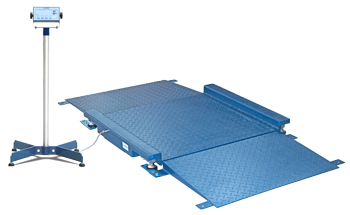

FLP SERIES LOW PROFILE PLATFORMS

Gravitation Ltd

€970,00 €1.140,00
SKU: FLP Series-1

Click here to view a specification PDF



"FLP" SERIES LOW PROFILE PLATFORMS

Low profile platforms, with 500 mm ramps, painted steel structure and chequered load surface. Ideal for weighing trolleys and pallet trucks thanks to the on/off ramps on both sides as well as the sideboards. The standard version is provided with approved load cells.

TECHNICAL FEATURES

  • Fitted with 4 shear-beam 350Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree. Chequered steel structure and load surface, oven-fire painted, RAL 5007 blue.
  • Adjustable, anti-shock jointed feet and level.
  • Power supply from 5 to 15 Vdc.
  • Hermetic junction box, IP67 wiring with shielded 5m long cable for connection to the indicator.
  • Fitted with sideboards and double on/off ramps.
  • Upon request:
    - platform calibration service with weight indicator;
    - 3000e CE-M approval (with first Periodic Check included, 3 years validity), to be combined always to the calibration service;
    - support column for indicator.
