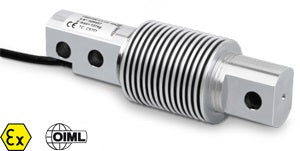

"FXC C6" SERIES: BENDING BEAM LOAD CELLS, C6 CLASS

Gravitation Ltd SKU: FXC20C6-1

€330,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
  • Description
  • Features
  • Delivery
Click here to view specification PDF

 MAIN FEATURES



    • C6 PRECISION CLASS

    • STAINLESS STEEL

    • IP68 PROTECTION

    • MAX. CAPACITIES FROM 20 TO 200 kg

    • SHIELDED CONNECTION CABLE

    • OIML CERTIFICATE AVAILABLE UPON REQUEST

    • TEST CERTIFICATE AVAILABLE UPON REQUEST






 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 10.000

    • Maximum number of verification intervals: nLC= 6000

    • Full Scale Output: 2mV/V +/- 0,1%

    • Combined error: 0,008% of Full Scale Output (F.S.)

    • Temperature effect on zero: +/- 0,0014% /°C

    • Temperature effect on full scale output: +/- 0,0007% /°C

    • Compensated Temperature Range: –10°C/+40°C

    • Operating Temperature Range: –20°C/+60°C

    • Creep error after 30 minutes +/- 0,012% F.S.

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 385 ± 20 Ohm

    • Output Resistance: 350 ± 5 Ohm

    • Insulation Resistance: > 5000 MOhm

    • Safe Overload: 150% F.S.

    • Ultimate Overload: 200% F.S.

    • 4-wire shielded cable, 3m long.








 ATEX VERSION



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.




Dimensions (mm)





Wiring Code

Colour
Function

  --
SHIELD

BLACK
INPUT +

YELLOW
OUTPUT +

WHITE
OUTPUT -

GREEN
INPUT -
