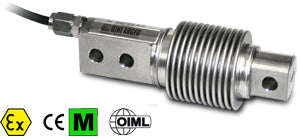

FXD SERIES BENDING BEAM LOAD CELLS

Gravitation Ltd

€180,00
SKU: FXD SERIES BENDING BEAM LOAD CELLS-1

Click here for a specification PDF





MAIN FEATURES



    • C3 PRECISION CLASS

    • STAINLESS STEEL

    • IP68 PROTECTION

    • MAX. CAPACITIES FROM 100 TO 500 kg

    • SHIELDED CONNECTION CABLE

    • OIML CERTIFICATE AVAILABLE UPON REQUEST

    • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 10.000

    • Maximum number of verification intervals: nLC= 3000

    • Full Scale Output: 2.0 ± 0,002mV/V

    • Combined error: 0,017% of Full Scale Output (F.S.)

    • Non-Repeatability: 0,015% F.S.

    • Temperature effect on zero: +/- 0,02% F.S. / 10°C

    • Temperature effect on full scale output: +/- 0,02% F.S. / 10°C

    • Compensated Temperature Range: –10°C/+40°C

    • Operating Temperature Range: –30°C/+70°C

    • Creep error after 30 minutes +/- 0,016% F.S.

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 400 ± 20 Ohm

    • Output Resistance: 352 ± 3 Ohm

    • Insulation Resistance: > 5000 MOhm

    • Safe Overload: 120% F.S.

    • Ultimate Overload: 150% F.S.

    • Nominal displacement: < 0,4 mm

    • 4-wire shielded cable, 3m long, 5mm diameter.





























 ATEX VERSION



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.



Dimensions (mm)


































Wiring Code

Colour
Function

  --
SHIELD

GREEN
OUTPUT +

RED
INPUT +

WHITE
OUTPUT -

BLACK
INPUT -
