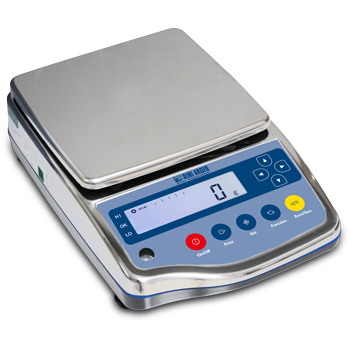

GAM SERIES STAINLESS STEEL TECHNICAL PRECISION SCALE
GAM SERIES STAINLESS STEEL TECHNICAL PRECISION SCALE
GAM SERIES STAINLESS STEEL TECHNICAL PRECISION SCALE

GAM SERIES STAINLESS STEEL TECHNICAL PRECISION SCALE

Gravitation Ltd SKU: GAM Series Stainless Steel Group-1

€1.205,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF







 TECHNICAL FEATURES



    • High contrast backlit display.

    • Splashproof membrane keypad.

    • Splashproof constuction, upper structure completely in stainless steel.

    • Overall IP65 protection.

    • Stainless steel plate, size:
      - GAM320 and GAM820 models Ø 140mm
      - GAM2200, GAM3200, GAM6200, GAM8200, GAM15000 models 190x190mm.

    • Weight detection through tuning fork system.

    • Level and adjustable foot assembly.

    • Power supply: standard fitted with 230 Vac power adapter or optional kit for power supply through 4 AA batteries.

    • RS232/c port for connection to PC, 3590E series indicator or printer.

    • Upon request:
      - ACCREDIA calibration with issuing of relative certificate;
      - CE-M approval (Initial Verification Included, validity 3 years);



























 STANDARD FUNCTIONS



    • totalisation;

    • weight checking;

    • counting;

    • % weight;

    • suspended weighing (for gravimetric measurements);

    • animals weighing;

    • zeroing;

    • semi-automatic tare;

    • digital calibration.



























 ADVANCED APPLICATION WITH 3590E TOUCH SCREEN



    • This configuration allows you to use the GAM scale as a digital platform for 3590E TOUCH SCREEN indicators.

    • To create a weighing station with 3590E TOUCH SCREEN, you need to order together with the scale, the indicator, the RSCBSHG cable, and the S1 advanced configuration service.

      ADVANCED FUNCTIONS via serial port connection:


    • Statistical sampling of prepackaged goods

    • Microdosing

    • Multiscale counting

    • Tolerance control

    • Wizard formulation

    • Receipts, labels printing, storage and data transmission
