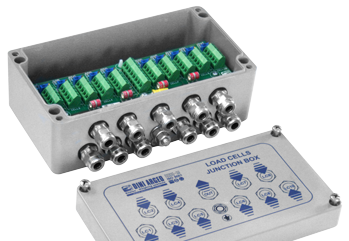

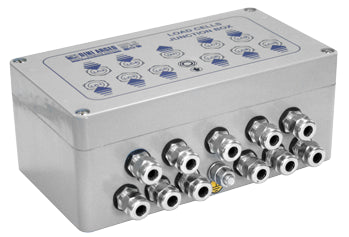

"JB10Q": EQUALISED JUNCTION BOX, WITH UP TO 10 LOAD CELLS
"JB10Q": EQUALISED JUNCTION BOX, WITH UP TO 10 LOAD CELLS
"JB10Q": EQUALISED JUNCTION BOX, WITH UP TO 10 LOAD CELLS
"JB10Q": EQUALISED JUNCTION BOX, WITH UP TO 10 LOAD CELLS

"JB10Q": EQUALISED JUNCTION BOX, WITH UP TO 10 LOAD CELLS

Gravitation Ltd SKU: JB10Q Group

POA

Pay in 4 interest-free installments for orders over €50.00 with
Enquire Now
Collection Available
All equipment can be collected in person from our HQ
Get Directions
Description Features Delivery Returns
Click here for a specification PDF


ANALOGIC "JB10Q" TECHNICAL FEATURES



    • Reinforced polyester case in fiberglass, ideal for harsh environments.

    • 10 + 1 waterproof metallic fairleads.

    • Surge Arresters against electric discharges and disturbances.

    • IP65 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 600ml of gel).

    • Maximum input voltage: 24Vdc.

    • Maximum input current: 700mA.

    • Maximum input load cell signal: 1000mV.

    • Temperature effect: 50ppm/°C.

    • Compact dimensions (lxwxh): 220x120x90mm.



























 DIGITAL "JB10QD" TECHNICAL FEATURES



    • Designed for the connection to digital load cells, in RS485.

    • 24Vdc input for the power supply of the load cells.

    • Reinforced polyester case in fiberglass, ideal for harsh environments.

    • 10 + 1 waterproof metallic fairleads.

    • Surge Arresters against electric discharges and disturbances.

    • IP65 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 600ml of gel).

    • Compact dimensions (lxwxh): 220x120x90mm.
