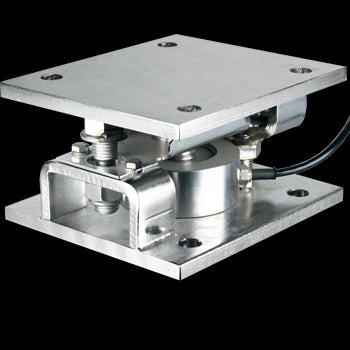

KCPN ASSEMBLY KITS FOR COMPRESSION LOAD CELLS

KCPN ASSEMBLY KITS FOR COMPRESSION LOAD CELLS
KCPN ASSEMBLY KITS FOR COMPRESSION LOAD CELLS KCPN ASSEMBLY KITS FOR COMPRESSION LOAD CELLS

Gravitation Ltd

€210,00
SKU: KCPN Group-1

Click here to view a specification PDF



 MAIN FEATURES



    • AISI304 STAINLESS STEEL BODY

    • GREAT RESISTANCE TO LATERAL FORCES

    • BOLTS FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL

    • SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES.


    • The KCPN kit is designed for allowing the correct functioning of the cells and for obtaining the requested weighing accuracy, but does not give protection to the cell and neither to the structure.















































































Code Dimensions in mm
A B C D E F H
KCPN10 175 96 150 115 10 M16 ø14
KCPN15 175 96 150 115 10 M16 ø14
KCPN30 230 118 200 160 10 M20 ø17
KCPN100 320 154 320 250 15 M30 ø23
