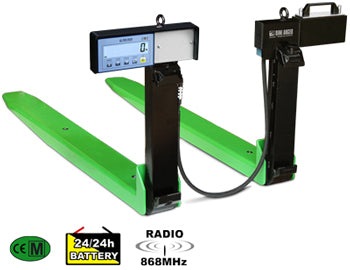

LTF "ACTIVE" SERIES WEIGHING KIT FOR LIFT TRUCK FORKS

Gravitation Ltd SKU: LTF Series-1

€2.450,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
  • Description
  • Features
  • Delivery
Click here to view a specification PDF




















 MAIN FEATURES



    • Weight indicator with waterproof keyboard, 5 keys, and protective case in extra thick steel, mounted on a fork and connected to the other fork by means of a cable.

    • LCD backlit display with 6 digits 25mm high, easily visible in any lighting condition.

    • Steel bearing IP65 structure.

    • Each fork weighs 75kg (LTF25) and 90kg (LTF50).

    • Functions with 4 shear-beam IP68 load cells.

    • Accuracy: +/- 0.2% of the capacity.

    • Max. allowable overload: 200% of the nominal capacity.

    • Max. horizontal inclination (flexibility): +/- 2° with the same accuracy characteristics.

    • Power supply through rechargeable battery, the operating time is of about 40 hours of continuous use.

    • Additional battery pack (optional) to use the system 24/7.

    • Fitted with battery charger, compatible with LTFBK option.

    • Auto switch-off function.

    • Fitted with infrared remote control.

    • Optional radio module for transmitting data to a PC or a remote repeater.





























 KEYBOARD FUNCTIONS



    • Zeroing, semi automatic tare, presettable tare, function mode, stand-by
      NOTES: functions available also with infrared remote control.





















SELECTABLE FUNCTIONS



    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Weighs totalisation

    • Formulation

    • +/- Check

    • Percentage weighing

    • Alibi memory, for weight approved transmission(optional)

    • Counting

    • Hold and Peak
