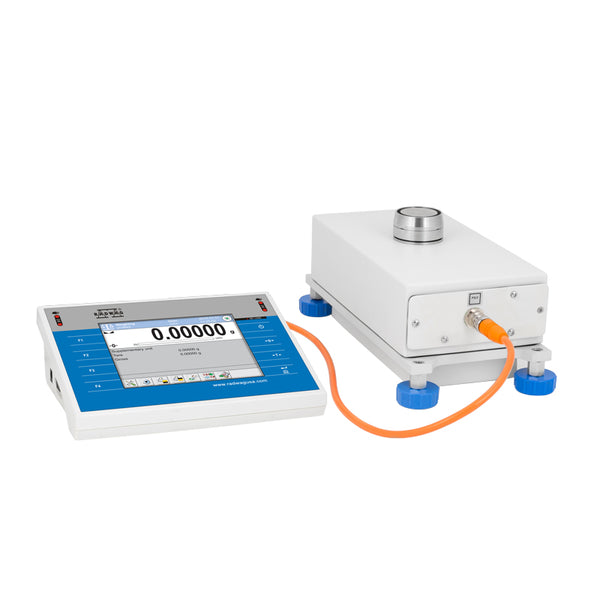

MAS.1.82/220.Y Weighing Module
MAS.1 Y device is an electromagnetic weighing module of high resolution, equipped with Y touch panel featuring 5.7" display. The device can be integrated into a weighing system of the customer. Solid construction and advanced electronics ensure great adaptability both when fitting the module into the technological line and building it into the customer device.
By cause of high measurement accuracy, it is recommended to install the module inside customer's device (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The module comes standard with a dedicated power supply.
Features:
- Brand new design of the electromagnetic mechanism housed in an aluminium enclosure
- Readability of 0.01 mg
- Overload protection
- Ease of adaptation to the required storage space
- Internal adjustment
- Various options of hardware configuration
The Y panel functionality is remarkable thanks to use of numerous interfaces: 2×RS232, 2×USB type A, Ethernet, 4×IN, 4×OUT, Wi-Fi®
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
Datasheet
Metrological Parameters | |
---|---|
Maximum capacity [Max] | 82 / 220 g |
Minimum load | 1 mg |
Readability [d] | 0.01 / 0.1 mg |
Tare range | -220 g |
Minimum weight (USP) | 40 mg |
Minimum weight (U=1%, k=2) | 4 mg |
Repeatability (Max) | 0.1 mg |
Repeatability (5% Max) | 0.02 mg |
Linearity | ±0.06 / 0.2 mg |
Stabilization time | 6 / 2 s |
Physical Parameters | |
Display | 5.7” Resistive Color Touchscreen |
Weighing pan dimensions | ø42 mm |
Device dimensions (W × D × H) | 289 × 143 × 125 mm |
Packaging dimensions (W × D × H) | 650 × 340 × 315 mm |
Net weight | 4.7 kg |
Gross weight | 6.7 kg |
Construction | |
Protection class | IP 54 |
Communication Interface | |
Communication interface | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
Electrical Parameters | |
Power supply | 100 – 240 V AC 50/60 Hz |
Environmental Conditions | |
Operating temperature | +10 – +40 °C |
Relative humidity | 40% – 80% |
