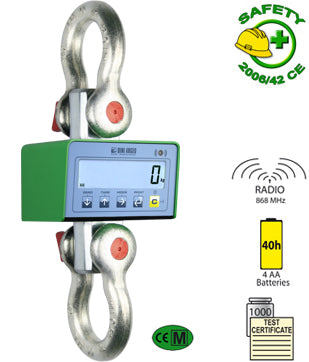

MCWN "NINJA" SERIES SUSPENDED CRANE SCALES

MCWN "NINJA" SERIES SUSPENDED CRANE SCALES
MCWN "NINJA" SERIES SUSPENDED CRANE SCALES MCWN "NINJA" SERIES SUSPENDED CRANE SCALES

Gravitation Ltd

€475,00
SKU: MCWNT1-3SERIES-1

Click here to view a specification PDF







MAIN FEATURES



    • 25 mm LCD backlit display, easily visible in any lighting condition;

    • Fitted with upper and lower shackles;

    • Compact size and minimum distance between upper and lower shackle;

    • Precision: +/- 0.03% on F.S.;

    • 5-key waterproof keypad: Zero, semi automatic or preset Tare, Mode, Print, On/Off;

    • Sturdy case in oven-fire painted steel;

    • Fitted with 868MHz multipoint radio frequency module (RF versions), for connection to remote printer, PC of one or more crane scales (also with approved transmission through the Alibi Memory option), or weight indicator/repeater of one or more crane scales (with attached printer, labeller, or other accessories).

    • Fitted with infrared remote control for use up to 8m of distance. The remote control can be configured by the customer as a single automatic tare or as a remote keypad;

    • Power supply through 4 AA batteries, which may be rechargeable, operating time of about 40 hours (without radio frequency communication);

    • Digital calibration and programmable Set-Up directly from the keypad or from the PC with Dinitools;

    • Programmable digital filter and auto switch-off;

    • Operating termperature: -10 /+40 ºC;

    • RS232 serial port on the RJ45 connector for quick programming with Dinitools;

    • Fitted with protective transport case with dimensions (WxLxH) 175x480x390mm.



























 MAIN FUNCTIONS



    • Weighs accumulation.

    • +/- check.

    • Weigh percentile.

    • Input/Output.

    • Hold, for freezing the weight on the display.

    • Peak, for identifying the weight peaks.

    • X 10 high resolution visualisation.

    • Net/Gross or lb/kg conversion.



























 OPTIONS AVAILABLE ONLY AT TIME OF ORDER



    • Remote radio frequency weight indicator/repeater, with attached printer, labeller, or other accessories (see DFW.., 3590.., TRS.., DGT60.. series’ weight indicators).

    • Real Time Clock.

    • Alibi memory.

    • ACCREDIA calibration certificate according to OIML/ASTM standards.
