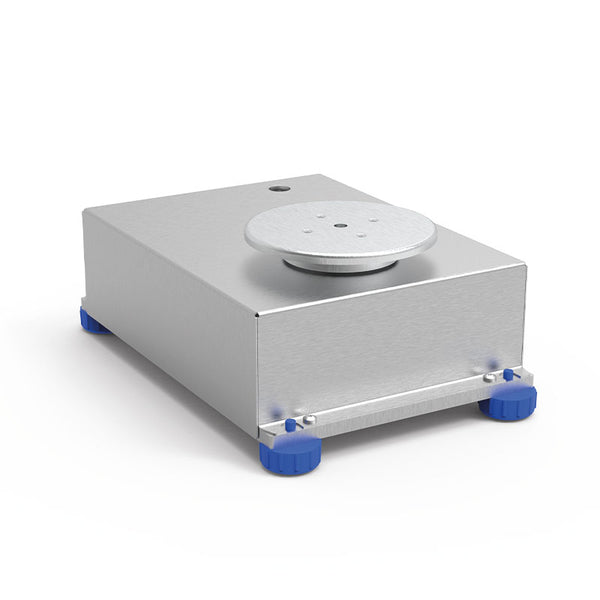

MPS 2000.Y Weighing Module
MPS Y device consists of the electromagnetic module of high resolution and Y operation panel equipped with LCD. It has been designed to be easily integrated into customer-owned weighing systems, and therefore can be built either into technological line or inside weighing devices or laboratory equipment. The MPS Y allows to perform the measurements using the under-pan weighing method or a regular weighing pan. In case of the under-pan method the load is suspended beneath the module.
By cause of high measurement accuracy, it is recommended to install the module inside customer's device (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.
The MPS module comes standard with a dedicated power supply.
Features:
- Brand new design of the electromagnetic mechanism housed in an aluminium enclosure
- Readability of 0.01 g
- Ease of adaptation to the required storage space
- Internal adjustment
- Various options of hardware configuration
The Y panel functionality is remarkable thanks to use of numerous interfaces: 2×RS232, 2xUSB type A, Ethernet, 4×IN, 4×OUT, Wi-Fi®.
MPS.Y can also be integrated with E2R Weighing Records and E2R PGC.
Datasheet
| Metrological Parameters | |
|---|---|
| Maximum capacity [Max] | 2000 g |
| Minimum load | 20 mg |
| Readability [d] | 1 mg |
| Tare range | -2000 g |
| Repeatability | 0.5 mg |
| Linearity | ±4 mg |
| Stabilization time | 3 s |
| Adjustment | Internal (automatic) |
| Physical Parameters | |
| Display | 5.7” Resistive Color Touchscreen |
| Weighing pan dimensions | ø115 mm |
| Device dimensions W x D x H | 293×190×112 mm |
| Packaging dimensions W x D x H | 610×340×285 mm |
| Net weight | 4.8 kg |
| Construction | |
| Protection class | IP 32 |
| Housing | Aluminum |
| Communication Interface | |
| Communication interface | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Electrical Parameters | |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Environmental Conditions | |
| Operating temperature | +10 – +40 °C |
| Relative humidity | 40% – 80% |
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
