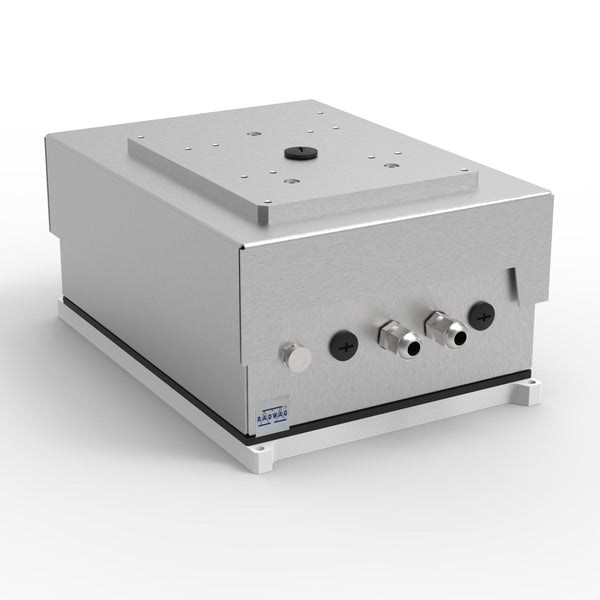

MWMH 200-3 Electromagnetic Compensation Weighing Module

MWMH series modules are not offered or distributed in the following countries: Germany, Switzerland, Italy, Japan and the USA.

Vast Max Capacity Range

Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement.

Protection Against Challenging Conditions

Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation.

Fast and Precise Measurement

High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module’s converter throughput is 3200 meas./s.

Cooperation with Terminals

Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications.

Mechanical Design Versions

  • MWMH xxx - 1 – model with Binder connectors (IP 65)
  • MWMH xxx - 2 – model with Binder connectors (IP 65), power supply and control of the transporter on a weighing pan
  • MWMH xxx - 3 – model with cable glands (IP 69K)
  • MWMH xxx - 4 – model with cable glands (IP 69K), power supply and control of the transporter on a weighing pan
  • MWMH xxx - TWD – model with cable glands (IP 65)

Datasheet

Metrological Parameters
Maximum capacity [Max] 2 kg
Minimum load 4 g
Preload range 4 – 7 kg
Readability [d] 0.1 g
Verification unit [e] 0.2 g
Tare range -2 kg
Repeatability 0.1 g
Stabilization time <0.1 s
Adjustment External
OIML Class III
Construction
Protection class IP 69 K
Material Stainless steel
Communication Interface
Communication interface RS232, Ethernet, 2×IN / 2×OUT
Electrical Parameters
Power supply 12 – 24 V DC
Power consumption (max.) 5 W
Environmental Conditions
Operating temperature +10 – +40 °C
Storage temperature -20 – +50 °C
Relative humidity 15% – 80%
Physical Parameters
Weighing pan dimensions 212 × 174 mm
Device dimensions (W × D × H) 344 × 224 × 166 mm
Packaging dimensions (W × D × H) 580 × 413 × 360 mm
Net weight 12.4 kg
Gross weight 15 kg
