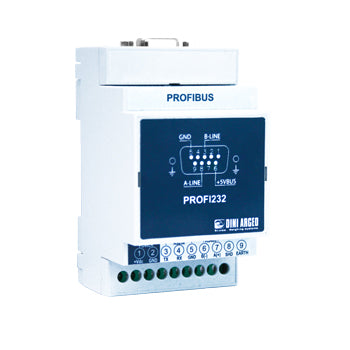

PROFI232 EXTERNAL PROFIBUS INTERFACE IN CASE FOR DIN BAR, FOR "ENTERPRISE" SERIES INDICATORS

Gravitation Ltd

€150,00
SKU: PROFI232

Click here to view a specification PDF



 FUNCTIONING



    • Complete functionality from the Profibus-DP Slave, in according to IEC 61158


    • 16 input bytes / 16 bytes output on SSC interface


    • Automatic baud rate selection: from 9600 bit/s to 12Mbit/s


    • Wide range of available data depending on the weight indicator to which it is applied


    • Available for CPWE and 3590E indicators, in the versions with management of the Profibus protocol





























 TECHNICAL FEATURES



    • ABS case for panel mounting on DIN bar


    • Dimensions lxwxh (mm): 53 x 58 x 90


    • Power supply: from 12 to 24Vdc

    • RS232 and RS485 serial ports on terminal board


    • Profibus port on 9 Pin connector


    • Board optoisolation against electric or electrostatic discharges
