PW SERIES PALLET-WEIGHERS

PW SERIES PALLET-WEIGHERS SALE
PW SERIES PALLET-WEIGHERS PW SERIES PALLET-WEIGHERS PW SERIES PALLET-WEIGHERS PW SERIES PALLET-WEIGHERS

Gravitation Ltd

€1.050,00 €1.240,00
SKU: PW SERIES Group-1

Click here to view a specification PDF







 MAIN FEATURES



    • Fitted with 4 shear-beam OIML approved load cells each with 350 Ohm input resistance with protection against dust

    • Painted steel structure, oven-fire painted RAL 5007 blue.

    • Adjustable, shock-proof jointed feet, and level; also has 2 wheels and handles for moving it.

    • 5/15 Vdc power supply.

    • Shielded 5m long cable with connectors for connection to the indicator.



























 STAINLESS STEEL VERSION



    • Extremely low profile, only 75mm high.

    • Self-centering articulated feet completely in stainless steel, non-slip, and anti-vibration, adjustable in height.

    • Strucutre, mechanics, and trinkets in AISI304, and IP68 stainless steel load cells, also ATEX.



























 OPTIONS ONLY AVAILABLE AT TIME OF ORDER



    • Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with indicators of our production).

    • High resolution model for internal factory use.



























 OPTIONS FOR ATEX VERSION (only for models in STAINLESS steel)



    • CCATEX: ATEX certificate for each load cell.

    • JB4QAP: ATEX certified junction box.

    • DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).









      WARNING
      With ATEX weighing systems it is necessary to use the STAINLESS STEEL version, which will be supplied without plastic supports and wheels.

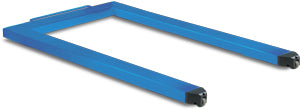

PW: painted steel pallet-weigher

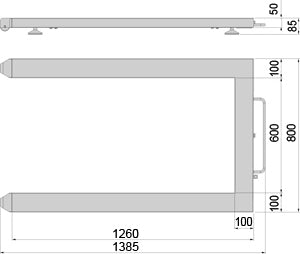

PW: dimensions in mm



PWI: AISI304 stainless steel pallet-weigher


PWI: low profile


PWI: dimensions in mm
