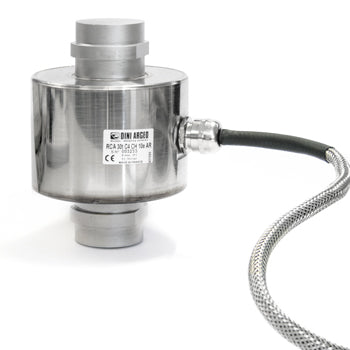

"RCA" SERIES COLUMN LOAD CELLS

Gravitation Ltd SKU: "RCA" SERIES Group

€550,00

Pay in 4 interest-free installments for orders over €50.00 with
Collection Available
All equipment can be collected in person from our HQ
Click here for a specification PDF

 MAIN FEATURES



    • C4 PRECISION CLASS.

    • MANUFACTURED IN STAINLESS STEEL.

    • IP68 PROTECTION.

    • 30.000 kg CAPACITY.

    • “ANTI RAT” 20 m ARMOURED CABLE.

    • TEST CERTIFICATE AVAILABLE UPON REQUEST.





























 TECHNICAL FEATURES



    • Full Scale Output: 2mV/V +/- 0,1%

    • Combined error of Full Scale Output: ± 0,017%

    • Operating temperature range: -20°C/+60°C

    • Input resistance: 815 ± 20 Ohm

    • Output resistance: 700 ± 5 Ohm

    • Safe overload: 150% F.S.

    • 4-pole armoured cable.





























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.





























      Wiring Code

      Colour
      Function

      WHITE
      OUTPUT +

      RED
      INPUT +

      YELLOW
      OUTPUT -

      BLUE
      INPUT -
